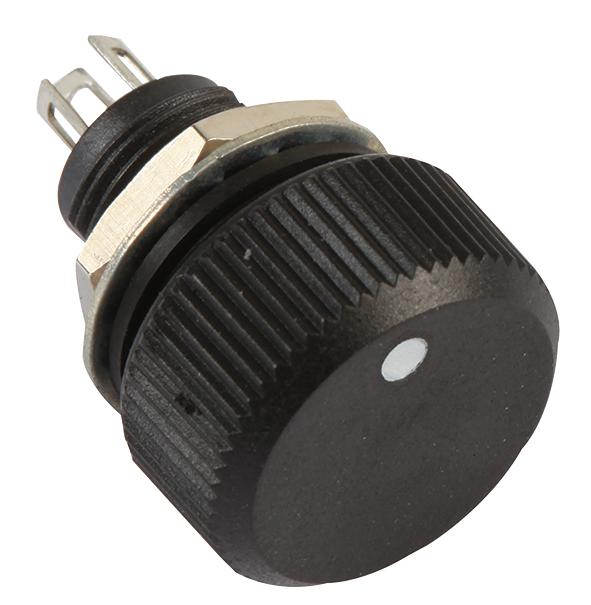

PA16NP102MAB15 Potentiometer, Linear, 1K, 1W, 20% Vishay

VISHAYUGS :PA16NP102MAB15 Code de commande:1517309

Prix:
Prix ​​promotionnel€20,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (57 unité)

Documents et téléchargements

description

VISHAY - PA16NP102MAB15 - Rotary Potentiometer, Conductive Plastic, 1 kohm, 1 Turns, Linear, 500 mW, ± 10%, PA16N

  • Track Resistance: 1kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 500mW
  • Resistance Tolerance: ± 10%
  • Product Range: PA16N Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: -
  • No. of Gangs: 1
  • Adjustment Type: Rotary
  • Shaft Length: -
  • Contact Resistance Variation +: 2%
  • Contact Resistance Variation -: 2%
  • Electrical Angular Rotation Tolerance +: 10°
  • Electrical Angular Rotation Tolerance -: 10°
  • End Resistance: 1ohm
  • Insulation Resistance: 10000000Mohm
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Proof Voltage: 2500V
  • Resistor Element Material: Conductive Plastic
  • Rotation Electrical Angle: 270°
  • Rotation Mechanical Angle: 300°
  • Temperature Coefficient: ± 1000ppm/°C
  • Voltage Rating: 350V
