P6KE6.8A Diode, TVs LITTELFUSE

LITTELFUSEUGS :P6KE6.8A Code de commande:1703028

Prix:
Prix ​​promotionnel€0,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (860 unité)

Documents et téléchargements

description

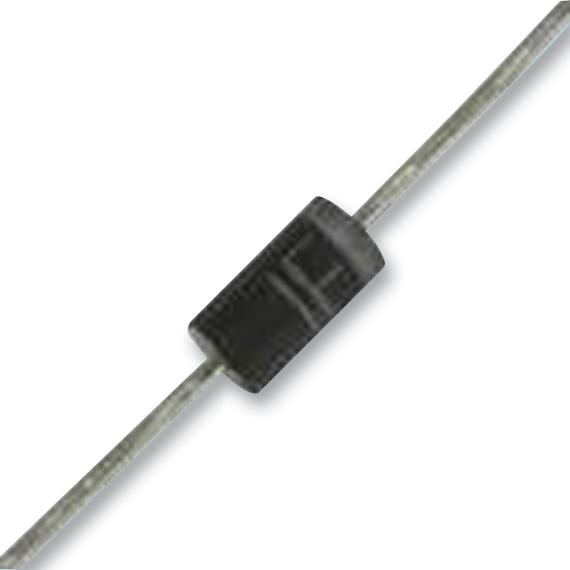

LITTELFUSE - P6KE6.8A - TVS Diode, P6KE6, Unidirectional, 5.8 V, 10.5 V, DO-15, 2 Pins

  • Product Range: P6KE6 Series
  • TVS Polarity: Unidirectional
  • Reverse Stand-Off Voltage Vrwm: 5.8V
  • Clamping Voltage Vc Max: 10.5V
  • Diode Case Style: DO-15
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 6.45V
  • Breakdown Voltage Max: 7.14V
  • Peak Pulse Power Dissipation: 600W
  • Automotive Qualification Standard: -
  • Breakdown Voltage: 6.45V
  • Breakdown Voltage Range: 6.45V to 7.14V
  • Diode Type: Unidirectional TVS
  • Operating Temperature Max: 175°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Peak Pulse Current Ippm: 58.1A
  • Power Dissipation Pd: 5W
  • Stand-off Voltage: 5.8V
  • Termination Type: Axial Leaded
