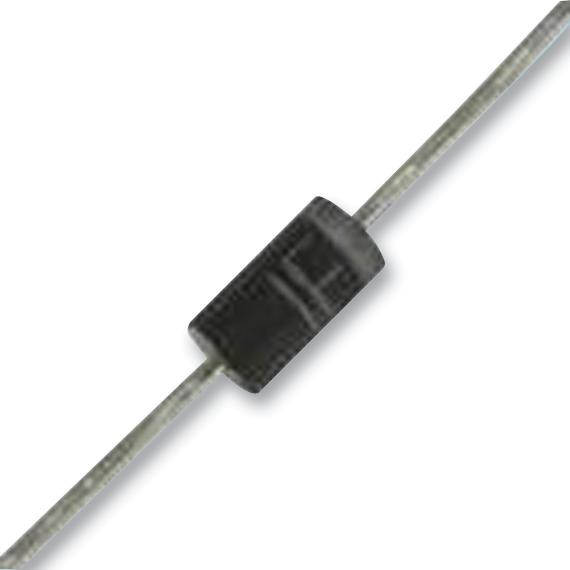

STMICROELECTRONICS - P6KE440A - TVS Diode, P6KE4, Unidirectional, 376 V, 776 V, DO-15, 2 Pins
- Product Range: P6KE4 Series
- TVS Polarity: Unidirectional
- Reverse Stand-Off Voltage Vrwm: 376V
- Clamping Voltage Vc Max: 776V
- Diode Case Style: DO-15
- No. of Pins: 2Pins
- Breakdown Voltage Min: 380V
- Breakdown Voltage Max: 420V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Alternate Case Style: DO-204AC
- Body Diameter: 3.56mm
- Breakdown Voltage: 440V
- Breakdown Voltage Range: 380V to 420V
- Breakover Voltage Min: 380V
- Capacitance Cd @ Vr Typ: 350pF
- Clamping Voltage @ 8/20µs Max: 776V
- Diode Type: Unidirectional TVS
- External Length / Height: 7.62mm
- Full Power Rating Temperature: 75°C
- Peak Pulse Current Ippm: 5.2A
- Power Dissipation Pd: 5W
- Power Dissipation Ptot Max: 5W
- Power Rating: 600W
- Reverse Leakage Current Max: 1µA
- Stand-off Voltage: 376V
- Test Current: 1mA
- Uni / Bi Directional Polarity: Unidirectional
