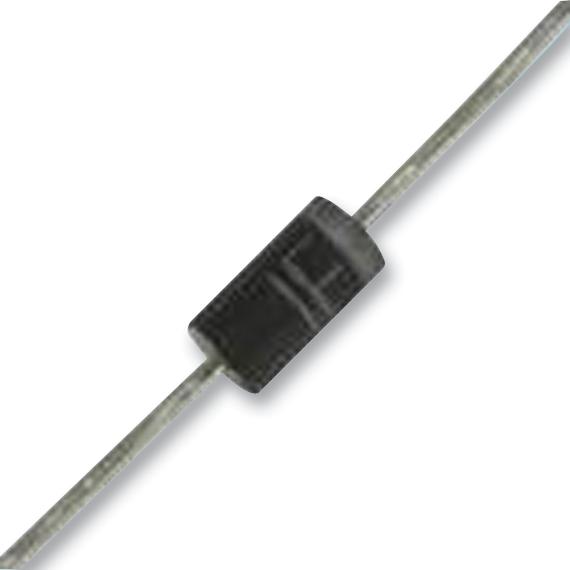

STMICROELECTRONICS - P6KE30A - TVS Diode, P6KE3, Unidirectional, 25.6 V, 41.4 V, DO-15, 2 Pins
- Product Range: P6KE3 Series
- TVS Polarity: Unidirectional
- Reverse Stand-Off Voltage Vrwm: 25.6V
- Clamping Voltage Vc Max: 41.4V
- Diode Case Style: DO-15
- No. of Pins: 2Pins
- Breakdown Voltage Min: 28.5V
- Breakdown Voltage Max: 31.5V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Alternate Case Style: DO-204AC
- Body Diameter: 3.56mm
- Breakdown Voltage: 30V
- Breakdown Voltage Range: 28.5V to 31.5V
- Breakover Voltage Min: 28.5V
- Capacitance Cd @ Vr Typ: 1075pF
- Clamping Voltage @ 8/20µs Max: 53.5V
- Diode Type: Unidirectional TVS
- External Length / Height: 7.62mm
- Full Power Rating Temperature: 75°C
- Peak Pulse Current Ippm: 14.5A
- Power Dissipation Pd: 5W
- Power Dissipation Ptot Max: 5W
- Power Rating: 600W
- Reverse Leakage Current Max: 5µA
- Stand-off Voltage: 25.6V
- Test Current: 1mA
- Uni / Bi Directional Polarity: Unidirectional
