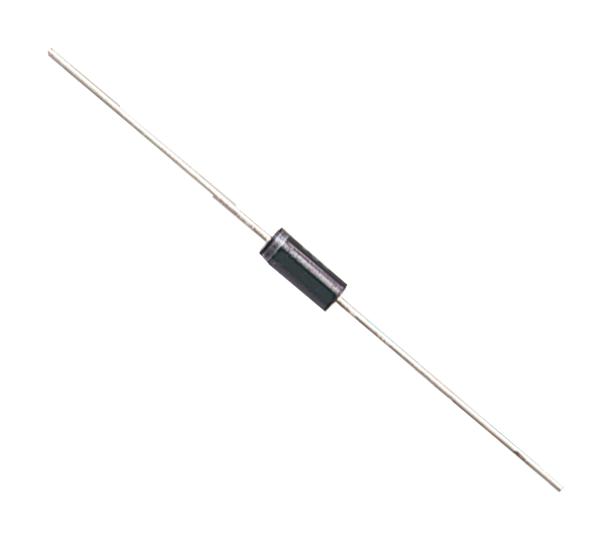

STMICROELECTRONICS - P6KE200CA - TVS Diode, P6KE, Bidirectional, 171 V, 274 V, DO-15, 2 Pins
- Product Range: P6KE Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 171V
- Clamping Voltage Vc Max: 274V
- Diode Case Style: DO-15
- No. of Pins: 2Pins
- Breakdown Voltage Min: 190V
- Breakdown Voltage Max: 210V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Alternate Case Style: DO-204AC
- Body Diameter: 3.56mm
- Breakdown Voltage: 200V
- Breakdown Voltage Range: 190V to 210V
- Breakover Voltage Min: 190V
- Capacitance Cd @ Vr Typ: 350pF
- Clamping Voltage @ 8/20µs Max: 353V
- Diode Type: Bidirectional TVS
- External Length / Height: 7.62mm
- Leakage Current: 5µA
- Peak Pulse Current Ippm: 2.2A
- Power Dissipation Pd: 5W
- Reverse Leakage Current Max: 5µA
- Stand-off Voltage: 171V
- Test Current: 1mA
- Uni / Bi Directional Polarity: Bidirectional
