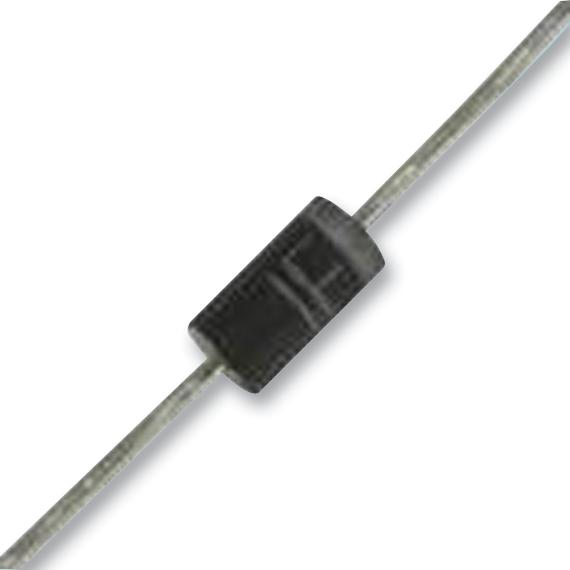

P6KE12CA Diode, TVs, 12V, 600W STMICROELECTRONICS

STMICROELECTRONICSUGS :P6KE12CA Code de commande:9885285

Prix:
Prix ​​promotionnel€0,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (322 unité)

Documents et téléchargements

description

STMICROELECTRONICS - P6KE12CA - TVS Diode, P6KE1, Bidirectional, 10.2 V, 16.7 V, DO-15, 2 Pins

  • Product Range: P6KE1 Series
  • TVS Polarity: Bidirectional
  • Reverse Stand-Off Voltage Vrwm: 10.2V
  • Clamping Voltage Vc Max: 16.7V
  • Diode Case Style: DO-15
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 11.4V
  • Breakdown Voltage Max: 12.6V
  • Peak Pulse Power Dissipation: 600W
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alternate Case Style: DO-204AC
  • Body Diameter: 3.56mm
  • Breakdown Voltage: 12V
  • Breakdown Voltage Range: 11.4V to 12.6V
  • Breakover Voltage Min: 11.4V
  • Capacitance Cd @ Vr Typ: 2300pF
  • Clamping Voltage @ 8/20µs Max: 21.7V
  • Diode Type: Bidirectional TVS
  • External Length / Height: 7.62mm
  • Leakage Current: 5µA
  • Peak Pulse Current Ippm: 36A
  • Power Dissipation Pd: 5W
  • Reverse Leakage Current Max: 5µA
  • Stand-off Voltage: 10.2V
  • Test Current: 1mA
  • Uni / Bi Directional Polarity: Bidirectional
