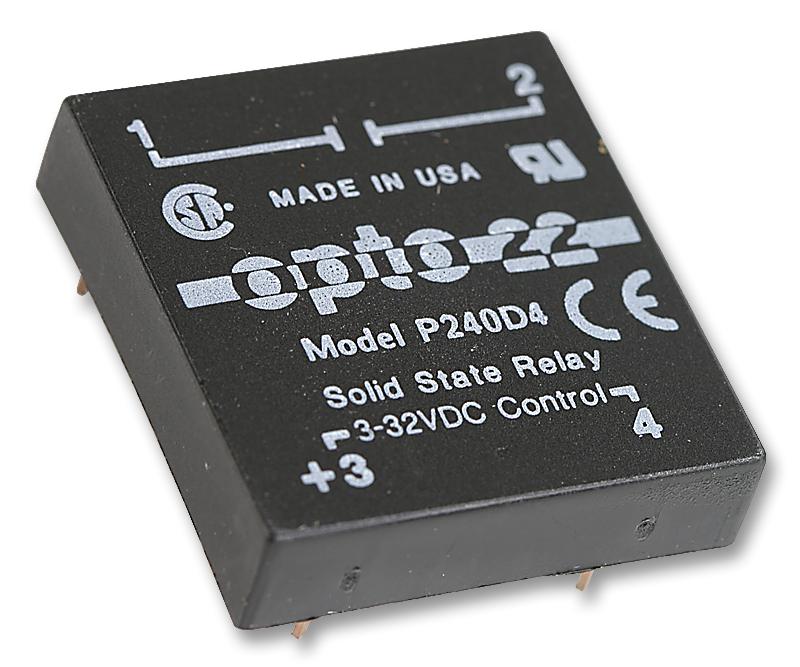

OPTO 22 - P240D4 - Solid State Relay, 4 A, 280 VAC, PCB, Through Hole, Zero Crossing
- Contact Configuration: -
- Load Current: 4A
- Operating Voltage Max: 280VAC
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 24VDC
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Control Voltage DC Max: 24VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Pickup: 3V
- Control Voltage Range: 3V DC to 24V DC
- Control Voltage Type: DC
- Current Rating: 4A
- Dropout Voltage Vdo: 1V
- I2t: 30s
- Input Voltage: 3V DC to 32V DC
- Isolation Voltage: 4kV
- Leakage Current: 5mA
- Load Current RMS Max: 4A
- Load Voltage Range: 24V AC to 280V AC
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 24V AC to 280V AC
- Output Type: Thyristor
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 24V
- Single Cycle Surge Current: 85A
- Surge Current: 85A
