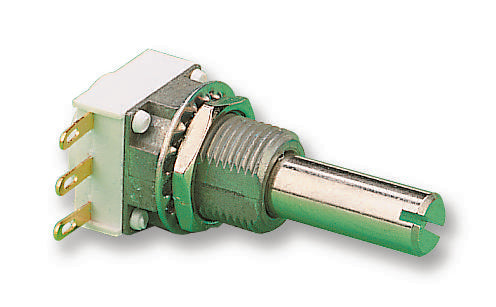

P11S1V0FLSY00101KA Potentiometer, 100R Linear Vishay

VISHAYUGS :P11S1V0FLSY00101KA Code de commande:1141595

Prix:
Prix ​​promotionnel€28,70

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (323 unité)

Documents et téléchargements

description

VISHAY - P11S1V0FLSY00101KA - Rotary Potentiometer, Cermet, 100 ohm, 1 Turns, Linear, 1 W, ± 10%, P11S

  • Track Resistance: 100ohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 10%
  • Product Range: P11S Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 25mm
  • Contact Resistance Variation -: 2%
  • Electrical Angular Rotation Tolerance +: 10°
  • Electrical Angular Rotation Tolerance -: 10°
  • End Resistance: 2ohm
  • External Depth: 11.1mm
  • External Length / Height: 13mm
  • External Width: 12.5mm
  • Full Power Rating Temperature: 70°C
  • Insulation Resistance: 3ohm
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 1500V
  • Resistance: 100ohm
  • Resistor Element Material: Cermet
  • Rotation Electrical Angle: 270°
  • Rotation Mechanical Angle: 300°
  • Temperature Coeff. +: 150ppm/°C
  • Temperature Coeff. -: 150ppm/°C
  • Temperature Coefficient: ± 150ppm/°C
