OVL-3323 LED, 3mm,Mega Bright Blue, 1.7CD, 465nm multicomp Pro

MULTICOMP PROUGS :OVL-3323 Code de commande:1716697

Prix:
Prix ​​promotionnel€0,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (21 unité)

Documents et téléchargements

description

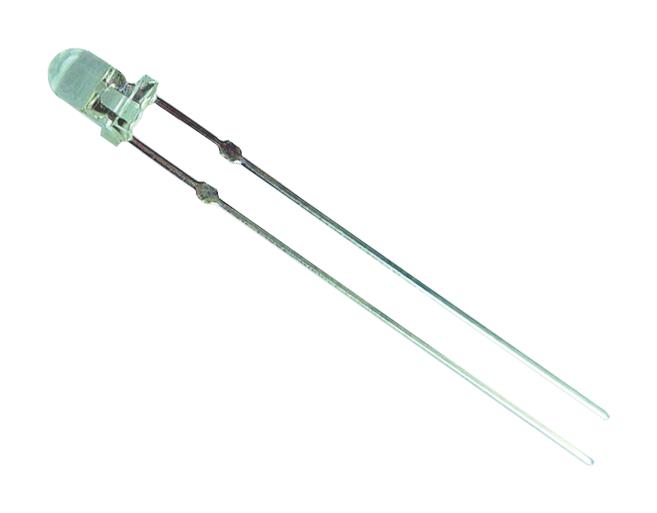

MULTICOMP PRO - OVL-3323 - LED, Blue, Through Hole, T-1 (3mm), 30 mA, 3.2 V, 465 nm

  • LED Colour: Blue
  • LED Mounting: Through Hole
  • LED Case Size: T-1 (3mm)
  • Forward Current If: 30mA
  • Forward Voltage: 3.2V
  • Wavelength Typ: 465nm
  • Luminous Intensity: 1.7cd
  • Viewing Angle: 30°
  • Lens Shape: Dome
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: T-1 (3mm)
  • Dominant Wavelength: 465nm
  • Forward Current @ Test: 20mA
  • Forward Current If Max: 30mA
  • Forward Voltage @ Test: 3.2V
  • Forward Voltage VF Max: 4V
  • LED / Lamp Size: 3mm / T-1
  • Luminous Intensity @ Test: 1.7cd
  • Luminous Intensity Min: 700mcd
  • Luminous Intensity Typ: 1700mcd
  • Material: InGaN / Sapphire
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • Power @ Test: 0.1W
  • Voltage Vf Typ: 3.2V
