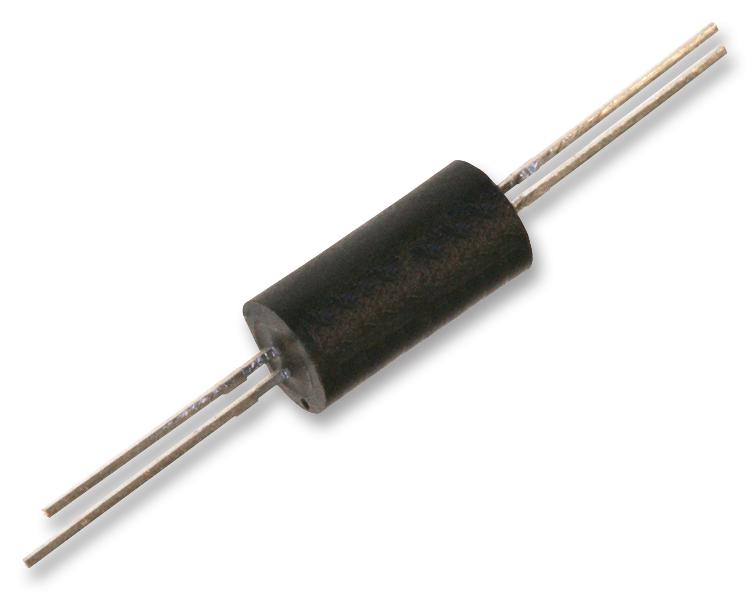

TT ELECTRONICS / OPTEK TECHNOLOGY - OPI1264B - Optocoupler, Transistor Output, 1 Channel, Axial, 4 Pins, 40 mA, 10 kV, 50 %
- No. of Channels: 1 Channel
- Optocoupler Case Style: Axial
- No. of Pins: 4Pins
- Forward Current If Max: 40mA
- Isolation Voltage: 10kV
- CTR Min: 50%
- Collector Emitter Voltage V(br)ceo: 30V
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: UL
- Approval Category: E58730
- Collector Emitter Saturation Voltage Vce(on): 0.4V
- Current Transfer Ratio Max: 125%
- Current Transfer Ratio Min: 50%
- Forward Current If(AV): 10mA
- Input Current: 20mA
- Material: Plastic
- No. of Channels: 1Channels
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 30V
- Peak Forward Current: 40mA
- Peak Wavelength: 890nm
- Power Ouput Dissipation: 100mW
