OPB990T55Z OPTO SWITCH, SLOTTED, LOGIC TT ELECTRONICS / OPTEK TECHNOLOGY

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OPB990T55Z Code de commande:1497951

Prix:
Prix ​​promotionnel€9,01

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (392 unité)

description

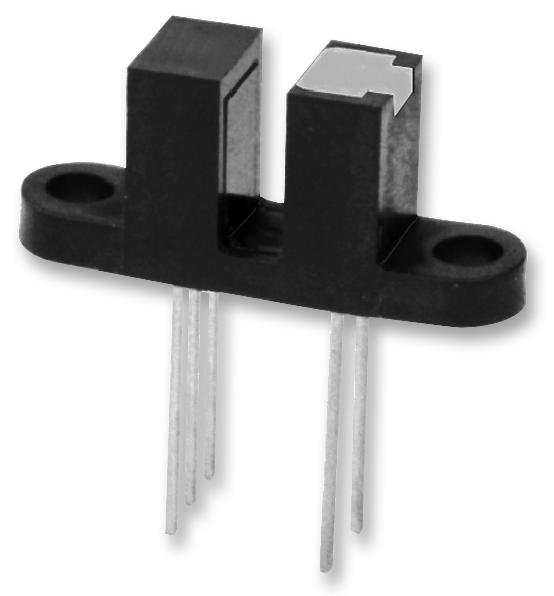

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB990T55Z - Transmissive Photo Interrupter, Totem Pole, Panel Mount, 3.18 mm, 1.27 mm, 40 mA, 2 V

  • Sensor Output: Totem Pole
  • Sensor Mounting: Panel Mount
  • Gap Width: 3.18mm
  • Aperture Width: 1.27mm
  • Forward Current If: 40mA
  • Reverse Voltage Vr: 2V
  • Forward Voltage: 1.7V
  • Product Range: OPB990 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 6.35mm
  • External Length / Height: 10.8mm
  • External Width: 12.32mm
  • Fall Time tf: 70ns
  • Forward Voltage VF Max: 1.7V
  • Gap Width: 3.11mm
  • Input Current: 20mA
  • No. of Channels: 1Channels
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +70°C
  • Optocoupler Output Type: Schmitt Trigger
  • Output Voltage: 35V
  • Output Voltage Max: 30V
  • Propagation Time H-L: 5µs
  • Propagation Time L-H: 5µs
  • Reverse Leakage Current Max: 100µA
  • Rise Time: 70ns
