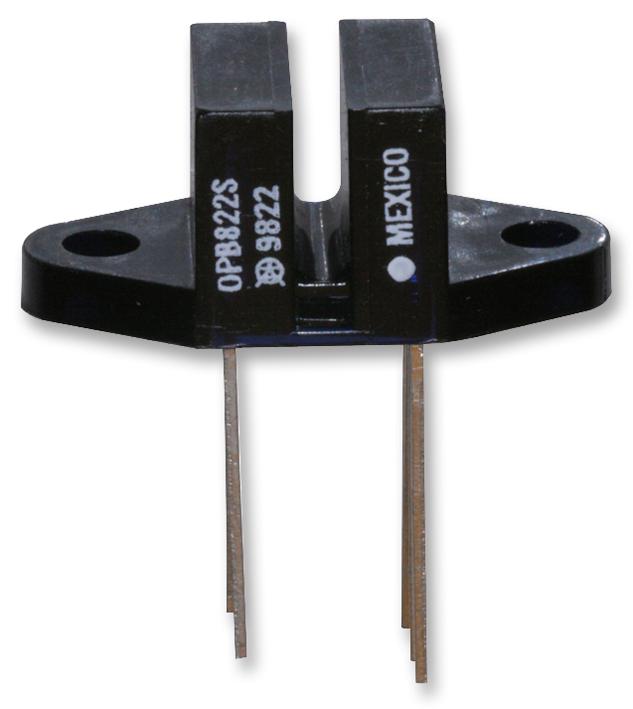

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB822SD - Transmissive Photo Interrupter, Phototransistor, Panel / Chassis, 2.286 mm, 0.254 mm, 20 mA, 2 V
- Sensor Output: Phototransistor
- Sensor Mounting: Panel / Chassis
- Gap Width: 2.286mm
- Aperture Width: 0.254mm
- Forward Current If: 20mA
- Reverse Voltage Vr: 2V
- Forward Voltage: 1.7V
- Product Range: OPB822SD Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 0.4V
- External Depth: 11.18mm
- External Length / Height: 16mm
- External Width: 24.13mm
- Forward Voltage VF Max: 1.7V
- Gap Width: 2.29mm
- Input Current: 20mA
- Lead Spacing: 2.54mm
- No. of Channels: 2Channels
- No. of Pins: 8Pins
- On Current Ic: 100µA
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 30V
- Peak Wavelength: 935nm
- Reverse Leakage Current Max: 100µA
- Row Pitch: 7.62mm
- Voltage BVceo Min: 30V
- Voltage BVeco Min: 5V
