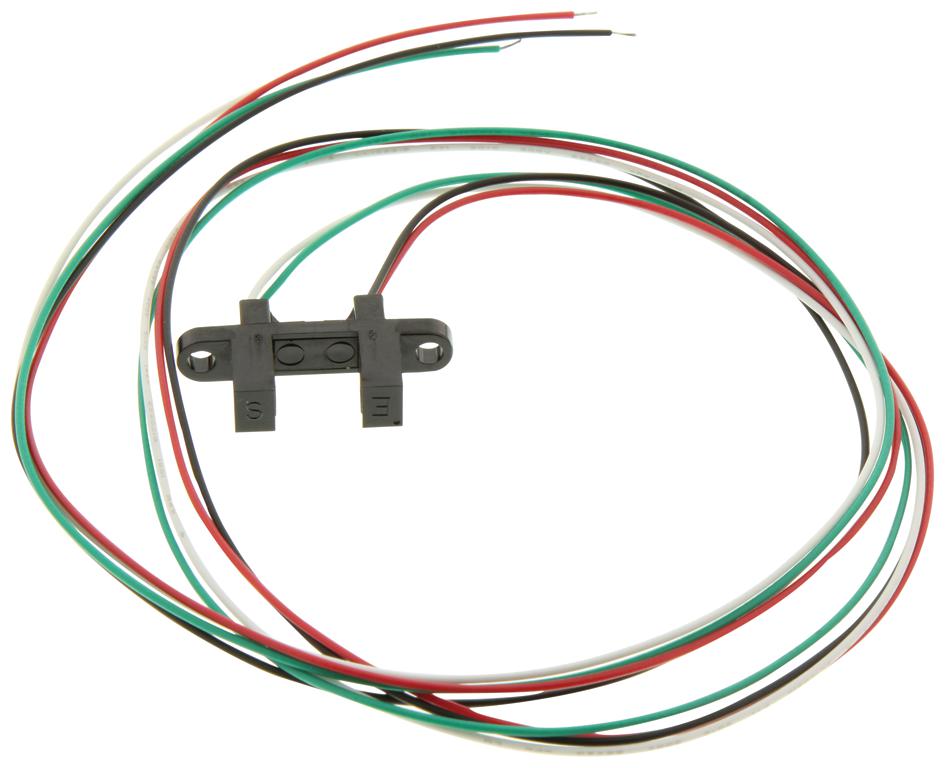

OPB810W51Z Photo Interrupter, Transmissive, 9.53mm TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OPB810W51Z Code de commande:1497916

Prix:
Prix ​​promotionnel€8,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1219 unité)

Documents et téléchargements

description

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB810W51Z - Transmissive Photo Interrupter, Phototransistor, Panel / Chassis, 9.53 mm, 1.27 mm, 20 mA, 2 V

  • Sensor Output: Phototransistor
  • Sensor Mounting: Panel / Chassis
  • Gap Width: 9.53mm
  • Aperture Width: 1.27mm
  • Forward Current If: 20mA
  • Reverse Voltage Vr: 2V
  • Forward Voltage: 1.7V
  • Product Range: OPB810 (L & W ) Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 0.4V
  • External Depth: 6.35mm
  • External Length / Height: 10.8mm
  • External Width: 30.99mm
  • Forward Voltage VF Max: 1.7V
  • Gap Width: 9.525mm
  • Input Current: 20mA
  • Material: Opaque plastic
  • No. of Channels: 1Channels
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +80°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 30V
  • Reverse Leakage Current Max: 100µA
  • Voltage BVceo Min: 30V
  • Voltage BVeco Min: 5V
