description

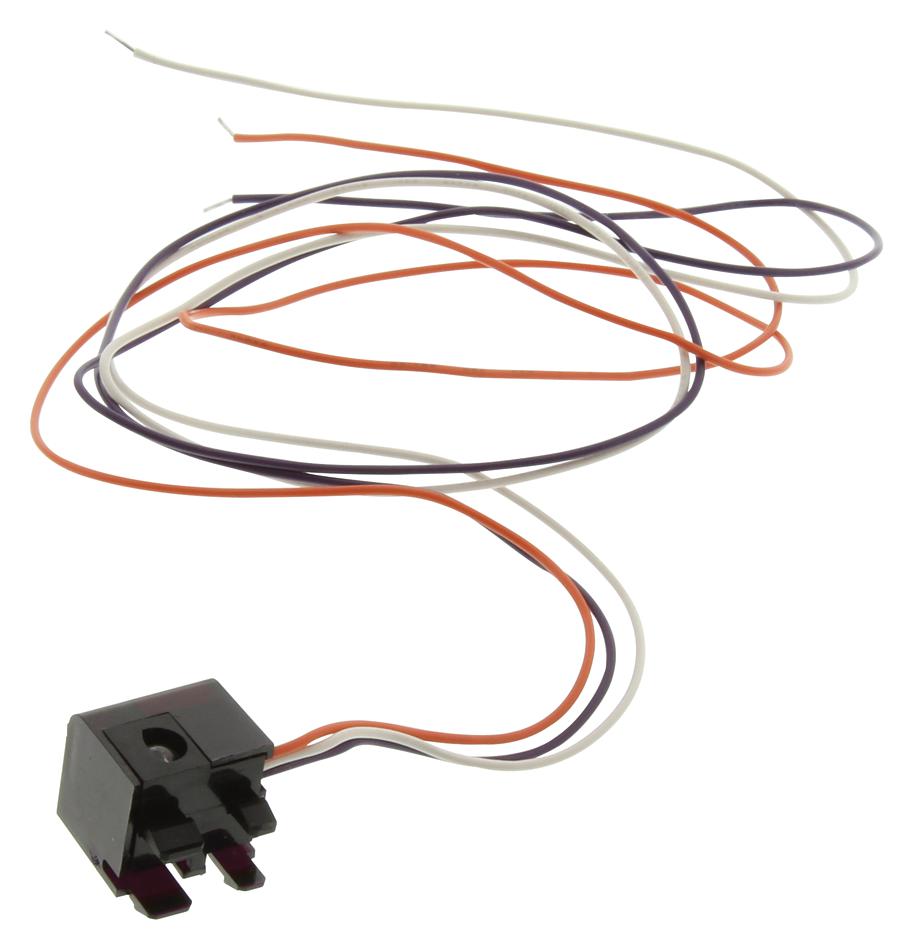

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB716Z - Reflective Photo Interrupter, Photologic®, Open Collector, Panel Mount, 12.7 mm
- Sensor Output: Open Collector
- Sensor Mounting: Panel / Chassis
- Sensing Distance: 12.7mm
- Forward Current If: -
- Reverse Voltage Vr: -
- Collector Emitter Voltage V(br)ceo: -
- Forward Voltage: -
- Product Range: OPB716Z Series
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 14.29mm
- External Length / Height: 12.19mm
- External Width: 11.9mm
- Input Current: 50mA
- Lead Length: 457mm
- No. of Channels: 1Channels
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Optocoupler Output Type: Schmitt Trigger
- Output: Buffered open-collector
- Output Voltage: 35V
- Peak Wavelength: 890nm
- Power Consumption: 300mW
- Sensing Distance Max: 12.7mm
- Supply Current: 50mA
- Supply Voltage: 5V
- Supply Voltage DC Max: 5.25V
- Supply Voltage DC Min: 4.75V
