OP906 Photodiode, Plastic, T-1 TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OP906 Code de commande:1497894

Prix:
Prix ​​promotionnel€1,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2198 unité)

Documents et téléchargements

description

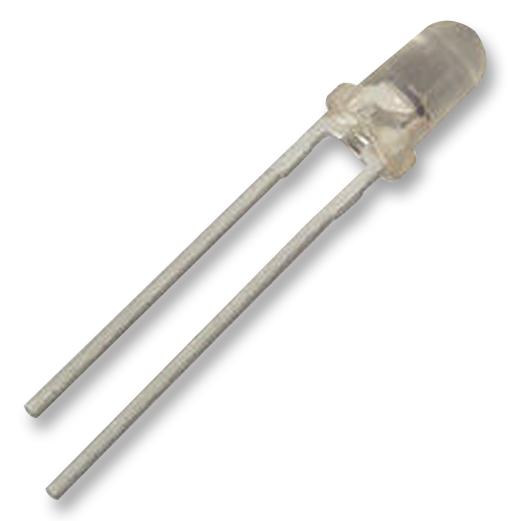

TT ELECTRONICS / OPTEK TECHNOLOGY - OP906 - Photodiode, 1 nA, 935 nm, T-1 (3mm)

  • No. of Pins: 2Pins
  • Diode Case Style: T-1 (3mm)
  • Wavelength of Peak Sensitivity: 935nm
  • Angle of Half Sensitivity ±: -
  • Dark Current: 1000pA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 100°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • External Length / Height: 4.82mm
  • Fall Time tf: 5ns
  • Forward Current If: 35µA
  • Forward Current If Max: 35µA
  • Forward Voltage VF Max: 1.2V
  • Head Diameter: 3.05mm
  • Lead Length: 12.7mm
  • Lead Spacing: 2.54mm
  • Operating Temperature Range: -40°C to +100°C
  • PIV Max: 60V
  • Power Dissipation Pd: 100mW
  • Reverse Leakage Current Max: 60nA
  • Rise Time: 5ns
  • Storage Temperature Max: 100°C
  • Storage Temperature Min: -40°C
  • Wavelength Typ: 935nm
