OP165A Infrared Emitter, 935nm, T-1 TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OP165A Code de commande:1497864

Prix:
Prix ​​promotionnel€2,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (675 unité)

description

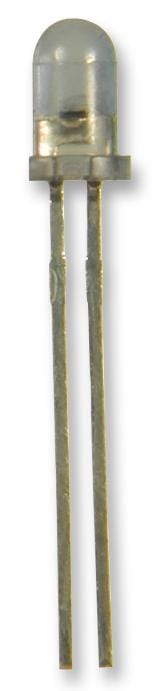

TT ELECTRONICS / OPTEK TECHNOLOGY - OP165A - Infrared Emitter, 935 nm, 18 °, T-1 (3mm), 1 µs, 500 ns

  • Peak Wavelength: 935nm
  • Angle of Half Intensity: 18°
  • Diode Case Style: T-1 (3mm)
  • Radiant Intensity (Ie): -
  • Rise Time: 1µs
  • Fall Time tf: 500ns
  • Forward Current If(AV): 20mA
  • Forward Voltage VF Max: 1.6V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 100°C
  • Automotive Qualification Standard: -
  • Product Range: OP165 Series
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • External Length / Height: 5.7mm
  • Head Diameter: 3mm
  • Lead Length: 12.7mm
  • Lead Spacing: 1.27mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +100°C
  • PIV Max: 2V
  • Peak Pulse Current Ippm: 3A
  • Radiometric Power Min: 1.95mW
  • Reverse Leakage Current Max: 100µA
  • Storage Temperature Max: 100°C
  • Storage Temperature Min: -40°C
  • Viewing Angle: 18°
