NTGS3443T1G MOSFET, P ONSEMI

ONSEMIUGS :NTGS3443T1G Code de commande:1611251

Prix:
Prix ​​promotionnel€1,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1494 unité)

Documents et téléchargements

description

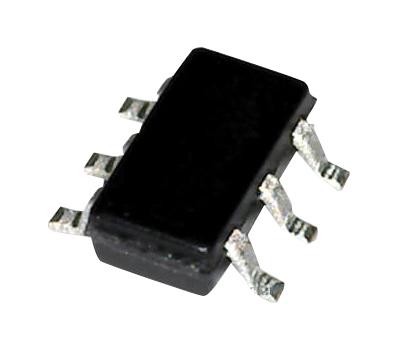

ONSEMI - NTGS3443T1G - Power MOSFET, P Channel, 20 V, 3.1 A, 0.058 ohm, TSOP, Surface Mount

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 3.1A
  • Drain Source Voltage Vds: -20V
  • On Resistance Rds(on): 0.058ohm
  • Rds(on) Test Voltage Vgs: -4.5V
  • Threshold Voltage Vgs: -950mV
  • Power Dissipation Pd: 2W
  • Transistor Case Style: TSOP
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 20V
  • Voltage Vgs Rds on Measurement: -4.5V
