NL4MP-ST Socket, Screw, Thread, 4WAY Neutrik

NEUTRIKUGS :NL4MP-ST Code de commande:3886219

Prix:
Prix ​​promotionnel€8,57

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (77 unité)

Documents et téléchargements

description

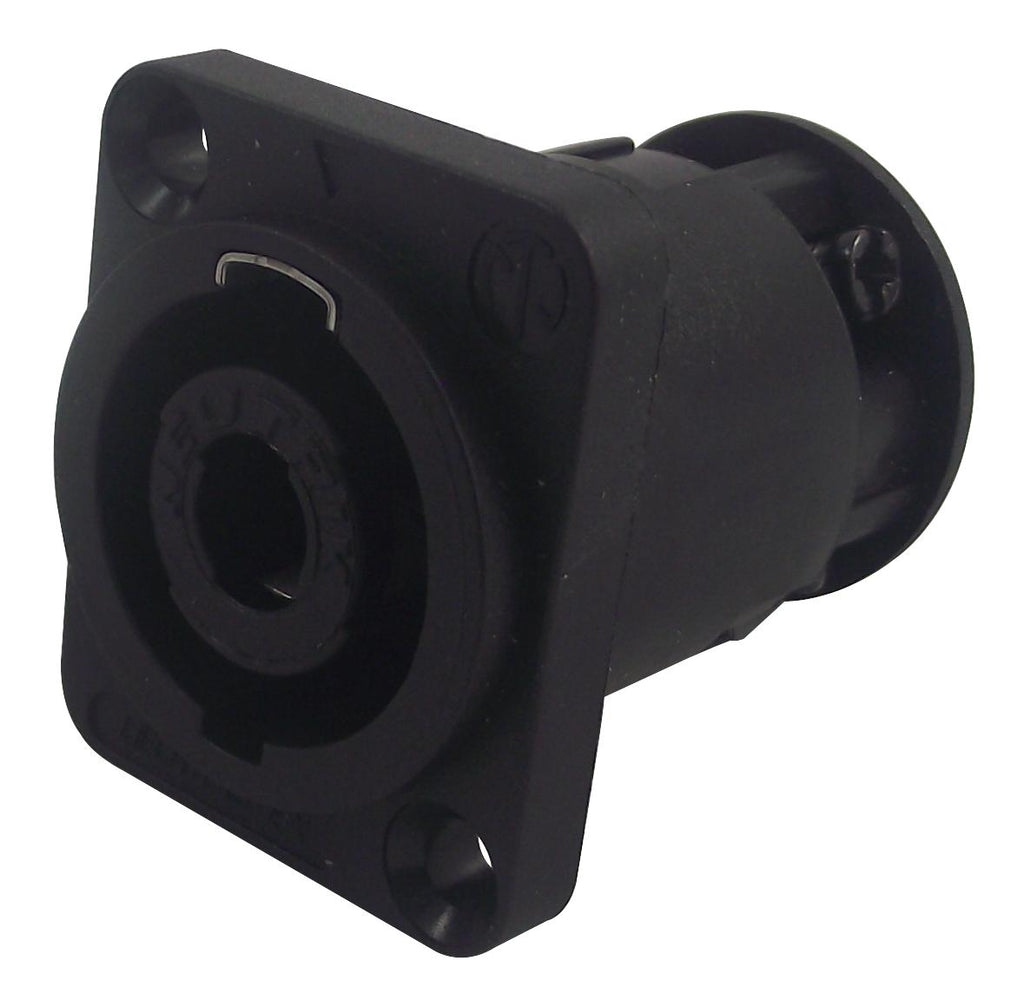

NEUTRIK - NL4MP-ST - Speaker / Loudspeaker Audio Connector, Counterunk Thru Holes, speakON, 4 Contact, Plug, Panel Mount

  • Product Range: speakON Series
  • No. of Contacts: 4 Contact
  • Gender: Plug
  • Connector Mounting: Panel Mount
  • Contact Plating: Silver Plated Contacts
  • Connector Body Material: Metal Body
  • SVHC: No SVHC (27-Jun-2018)
  • Colour: Black
  • Connector Colour: Black
  • Connector Mounting Orientation: Panel
  • Contact Resistance: 3mohm
  • Contact Termination: Screw
  • External Depth: 27mm
  • External Length / Height: 31mm
  • External Width: 26mm
  • Insulation Resistance: 100Mohm
  • No. of Contacts: 4Contacts
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Termination Method: Screw
  • Voltage Rating VAC: 250V
