NKE1209SC Converter, DC/DC, Sil, 1W, 9V Murata Power Solutions

MURATA POWER SOLUTIONSUGS :NKE1209SC Code de commande:1175769

Prix:
Prix ​​promotionnel€10,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

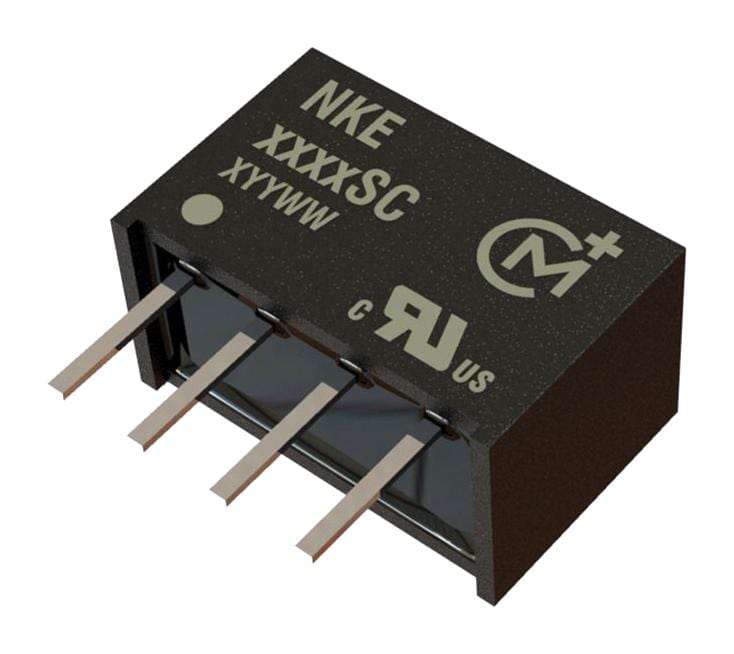

MURATA POWER SOLUTIONS - NKE1209SC - Isolated Through Hole DC/DC Converter, Miniature, ITE, 1:1, 1 W, 1 Output, 9 V, 111 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 9V
  • Output Current - Output 1: 111mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: NKE Series
  • Input Voltage DC Min: 10.8V
  • Input Voltage DC Max: 13.2V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 6mm
  • Height: 7.46mm
  • Depth: 11.48mm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: UL Recognised
  • Approvals & Standards: UL
  • Continuous Power Rating: 1W
  • Efficiency: 78%
  • External Depth: 6mm
  • External Length / Height: 7.46mm
  • External Width: 11.48mm
  • Flammability Rating: UL94V-0
  • Isolation Voltage: 3kV
  • Lead Spacing: 2.54mm
  • Line Regulation: 1%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Power Density: 2.09W/cm³
  • Power Rating: 1W
  • Supply Voltage: 12V
