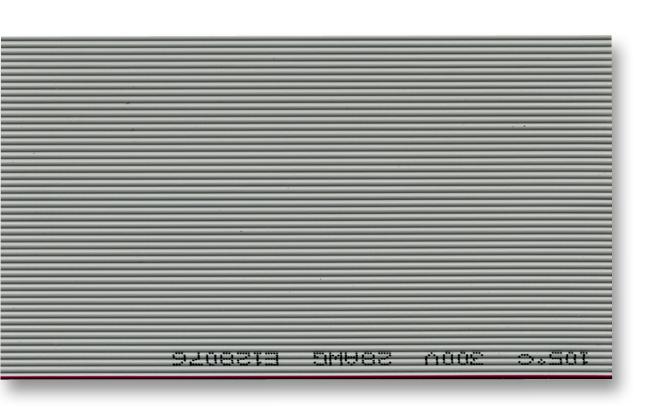

PRO POWER - NFCG-2850 - Ribbon Cable, Flat, Unscreened, 50 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m
- Cable Shielding: Unscreened
- No. of Cores: 50Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- Cable Width: 63.5mm
- No. of Max Strands x Strand Size: 7 x 0.127mm
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: NFCG Series
- Approval Bodies: CSA, UL
- Capacitance: 45pF/m
- Colour: Grey
- Conductor Make-up: 7/0.127mm
- Impedance: 100ohm
- Inductance Per Metre: 1.45µH/m
- Insulation Resistance: 1Gohm
- Operating Temperature Max: 105°C
- Primary Conductor Resistance: 237ohm/km
- Propagation Delay: 4.2ns/m
