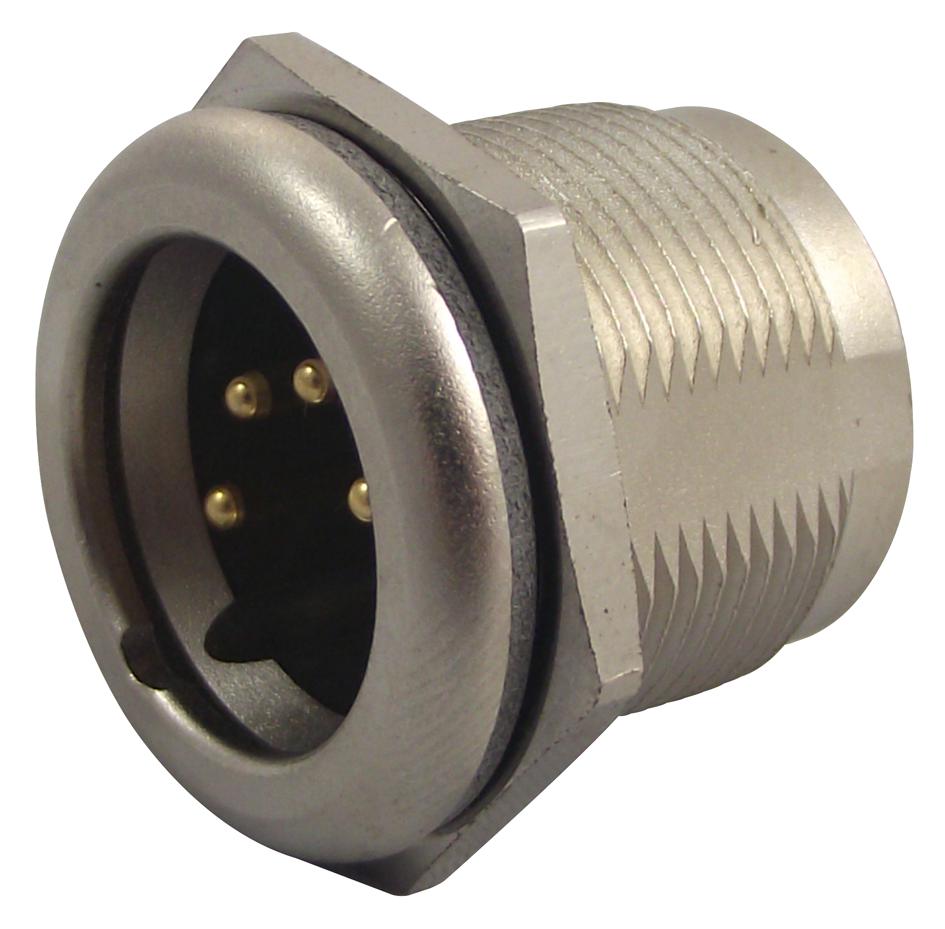

NEUTRIK - NC4MPR-HD - XLR Connector, 4 Contacts, Plug, Panel Mount, Gold Plated Contacts, Metal Body, P Series
- No. of Contacts: 4Contacts
- Gender: Plug
- Connector Mounting: Panel Mount
- Contact Plating: Gold Plated Contacts
- Connector Body Material: Metal Body
- Product Range: P Series
- SVHC: No SVHC (27-Jun-2018)
- Colour: Nickel
- Contact Resistance: 5mohm
- Contact Termination: Solder
- Current Rating: 10A
- External Depth: 24.9mm
- Flammability Rating: UL94HB
- Insertion Force: 35N
- Insulation Resistance: 2Gohm
- No. of Mating Cycles: 1000
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 20.6mm
- Termination Method: Solder
- Voltage Rating VAC: 50V
- XLR Capacitance: 7pF
