NC3FXCC Socket, xlr, Free, 'Digital', 3POLE Neutrik

NEUTRIKUGS :NC3FXCC Code de commande:3886177

Prix:
Prix ​​promotionnel€17,80

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (55 unité)

Documents et téléchargements

description

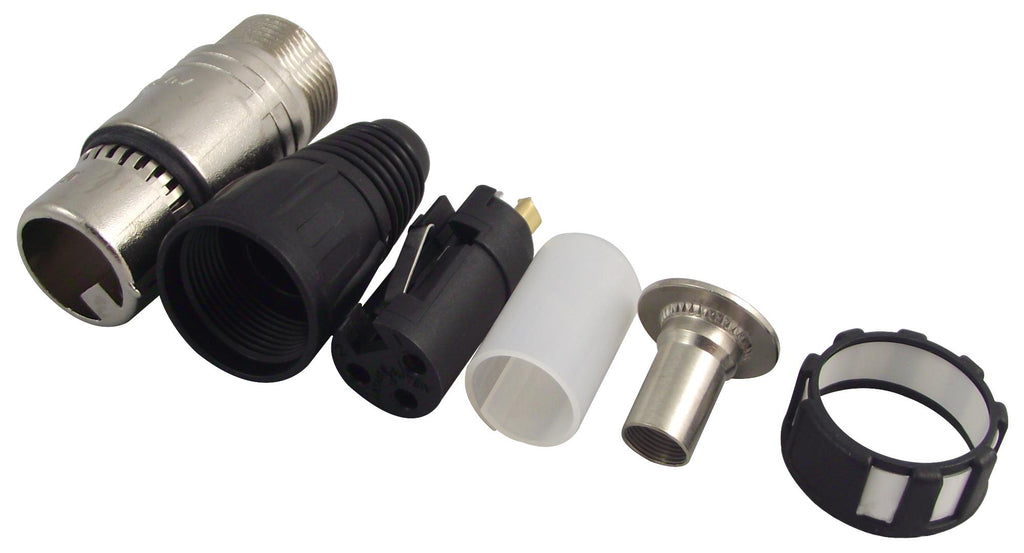

NEUTRIK - NC3FXCC - XLR Connector, 3 Contacts, Socket, Cable Mount, Gold Plated Contacts, Metal Body, X

  • No. of Contacts: 3Contacts
  • Gender: Socket
  • Connector Mounting: Cable Mount
  • Contact Plating: Gold Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: X Series
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 8mm
  • Cable Diameter Min: 3.5mm
  • Clamping Nut Material: POM
  • Colour: Nickel
  • Conductor Area CSA: 2.5mm²
  • Connector Colour: Natural
  • Contact Resistance: 3mohm
  • Contact Termination: Solder
  • Current Rating: 16A
  • Dielectric Strength: 1500V/m
  • Female Contact Material: Bronze
  • Flammability Rating: UL94-HB
  • Insertion Force: 20N
  • Insulation Resistance: 1Gohm
  • Male Contact Material: Brass
  • Material: Zinc Die-cast
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Termination Method: Solder
  • Wire Area Size Max: 2.5mm²
  • Wire Size AWG Max: 14AWG
