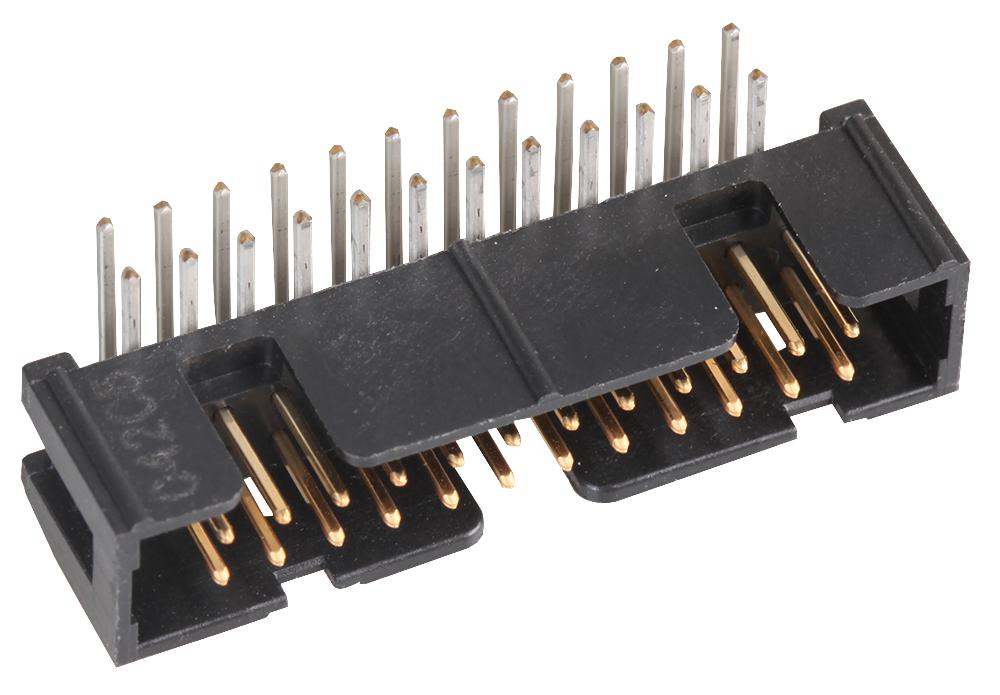

3M - N2524-5002RB - Pin Header, Right Angle, Wire-to-Board, 2.54 mm, 2 Rows, 24 Contacts, Through Hole Right Angle
- Pitch Spacing: 2.54mm
- No. of Contacts: 24Contacts
- Gender: Header
- Product Range: 2500 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (17-Dec-2015)
- Colour: Black
- Contact Resistance: 20mohm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- No. of Mating Cycles: 200
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 0.89mm
