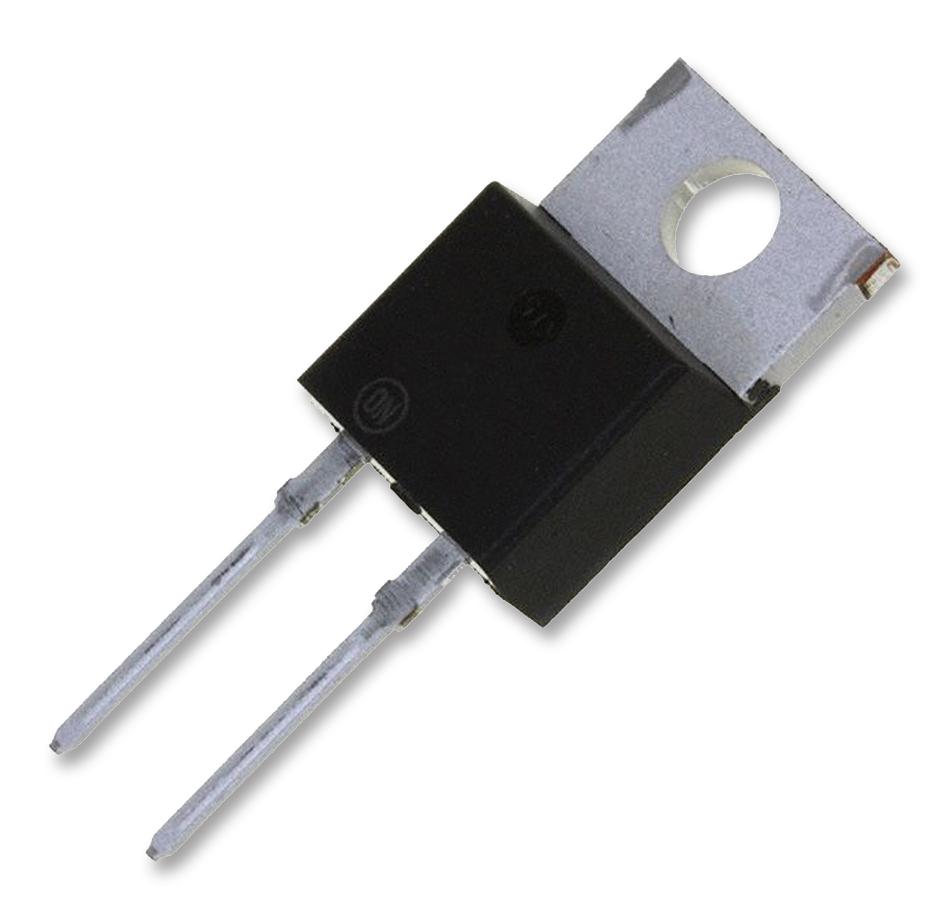

ONSEMI - MUR860G - Fast / Ultrafast Diode, 600 V, 8 A, Single, 1.5 V, 50 ns, 100 A
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 8A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.5V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 100A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220AC
- No. of Pins: 2 Pin
- Product Range: MUR86 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 100A
- Device Marking: MUR860
- Diode Type: Fast Recovery
- Forward Current If Max: 8A
- Forward Voltage: 1.5V
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Reverse Recovery Time trr Typ: 50ns
