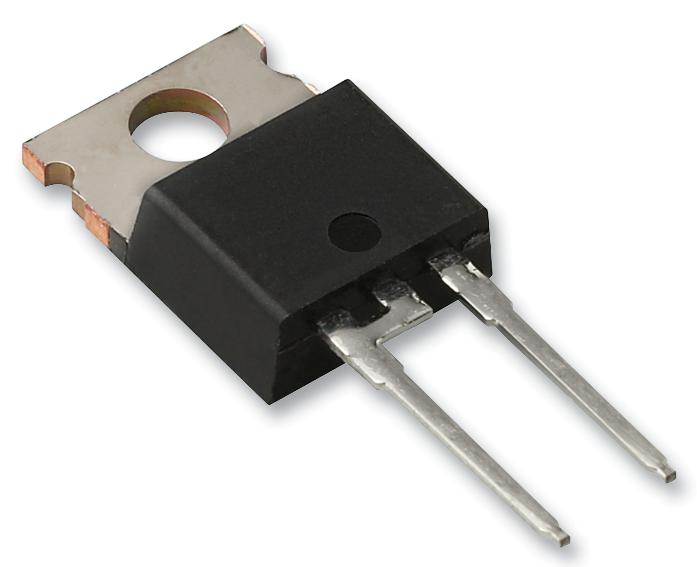

MUR840G Diode, Ultra-Fast ONSEMI

ONSEMIUGS :MUR840G Code de commande:1611194

Prix:
Prix ​​promotionnel€2,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (435 unité)

Documents et téléchargements

description

ONSEMI - MUR840G - Fast / Ultrafast Diode, 400 V, 8 A, Single, 1.3 V, 50 ns, 100 A

  • Repetitive Reverse Voltage Vrrm Max: 400V
  • Forward Current If(AV): 8A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.3V
  • Reverse Recovery Time trr Max: 50ns
  • Forward Surge Current Ifsm Max: 100A
  • Operating Temperature Max: 175°C
  • Diode Case Style: TO-220AC
  • No. of Pins: 2 Pin
  • Product Range: MUR84 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Current Ifsm: 100A
  • Diode Type: Fast Recovery
  • No. of Pins: 2Pins
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Reverse Recovery Time trr Typ: 50ns
