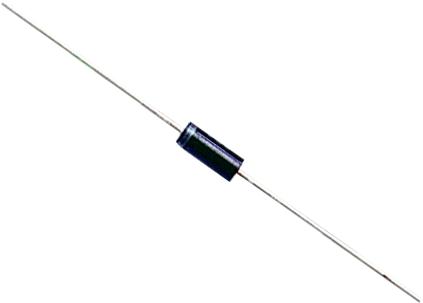

MUR160 R0 Rectifier, Single, 1A, 600v, DO-204AL Taiwan Semiconductor

TAIWAN SEMICONDUCTORUGS :MUR160 Code de commande:2677407

Prix:
Prix ​​promotionnel€0,77

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3250 unité)

Documents et téléchargements

description

TAIWAN SEMICONDUCTOR - MUR160 - Fast / Ultrafast Diode, 600 V, 1 A, Single, 1.35 V, 60 ns, 35 A

  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.35V
  • Reverse Recovery Time trr Max: 60ns
  • Forward Surge Current Ifsm Max: 35A
  • Operating Temperature Max: 175°C
  • Diode Case Style: DO-41 (DO-204AL)
  • No. of Pins: 2 Pin
  • Product Range: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current Ifsm: 35A
  • Diode Type: Fast Recovery
  • External Diameter: 3.6mm
  • External Length / Height: 7.6mm
  • Junction Temperature Tj Max: 175°C
  • Junction Temperature Tj Min: -65°C
  • Junction to Case Thermal Resistance A: 50°C/W
  • No. of Pins: 2Pins
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Reverse Recovery Time trr Typ: 50ns
  • Termination Type: Axial Leaded
