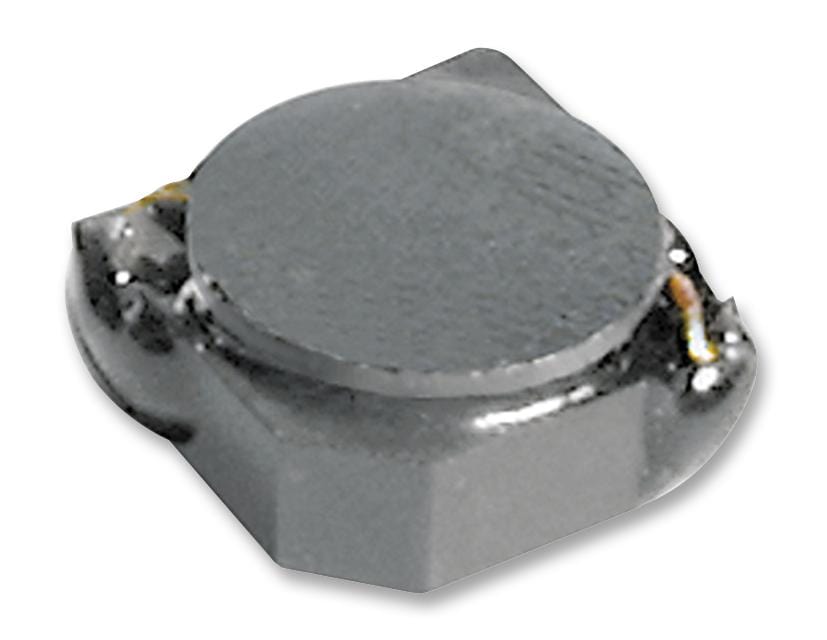

COILCRAFT - MSS4020-682MLD - Power Inductor (SMD), 6.8 µH, 1.3 A, Shielded, 650 mA, MSS4020, 4mm x 4mm x 2mm
- Inductance: 6.8µH
- RMS Current (Irms): 1.3A
- Inductor Construction: Shielded
- Saturation Current (Isat): 650mA
- Product Range: MSS4020 Series
- Power Inductor Case: 4mm x 4mm x 2mm
- DC Resistance Max: 0.175ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 75MHz
