description

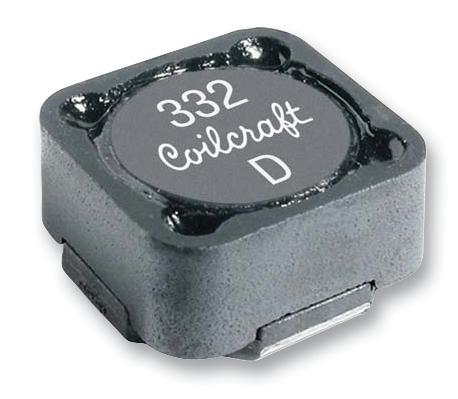

COILCRAFT - MSS1260-103MLD - Power Inductor (SMD), 10 µH, 4 A, Shielded, 6.18 A, MSS1260
- Inductance: 10µH
- RMS Current (Irms): 4A
- Inductor Construction: Shielded
- Saturation Current (Isat): 6.18A
- Product Range: MSS1260 Series
- Power Inductor Case: 12.3mm x 12.3mm x 6mm
- DC Resistance Max: 0.0239ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 22MHz
