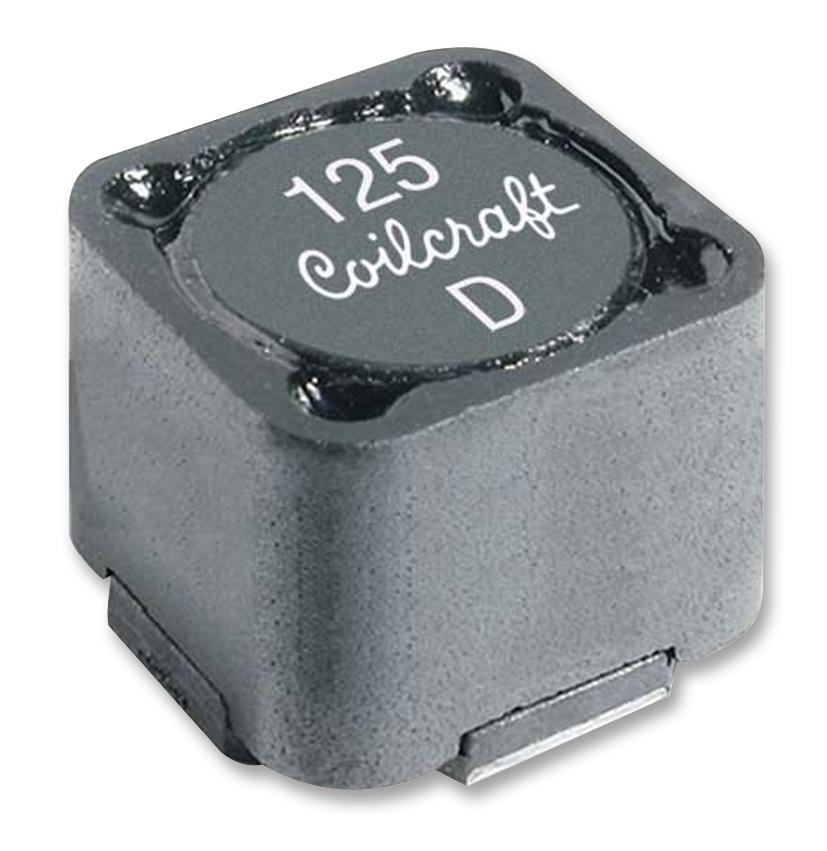

COILCRAFT - MSS1210-565KED - Power Inductor (SMD), 5.6 mH, 480 mA, Shielded, 410 mA, MSS1210, 12.3mm x 12.3mm x 10mm
- Inductance: 5.6mH
- RMS Current (Irms): 480mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 410mA
- Product Range: MSS1210 Series
- Power Inductor Case: 12.3mm x 12.3mm x 10mm
- DC Resistance Max: 4.72ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 450kHz
