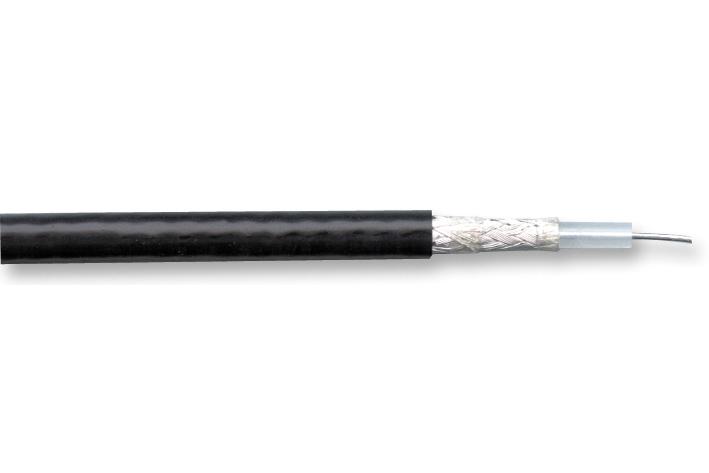

BELDEN - MRG1791.0050 - Coaxial Cable, RG179, 75 ohm, 164 ft, 50 m
- Coaxial Cable Type: RG179
- Wire Gauge: -
- Conductor Area CSA: -
- Impedance: 75ohm
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- Jacket Colour: Black
- Jacket Material: PVC
- Conductor Material: Copper
- No. of Max Strands x Strand Size: 7 x 0.1mm
- External Diameter: 2.8mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 27dB
- Attenuation @ 10MHz: 8dB
- Attenuation @ 1GHz: 88dB
- Capacitance: 67pF/m
- Conductor Make-up: 7 / 0.1mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Outer Diameter: 2.8mm
- Resistance per Metre: 802ohm/km
- Secondary Insulation Colour: Black
- Velocity of Propagation (%): 66%
- Voltage Rating VAC: 1000V
