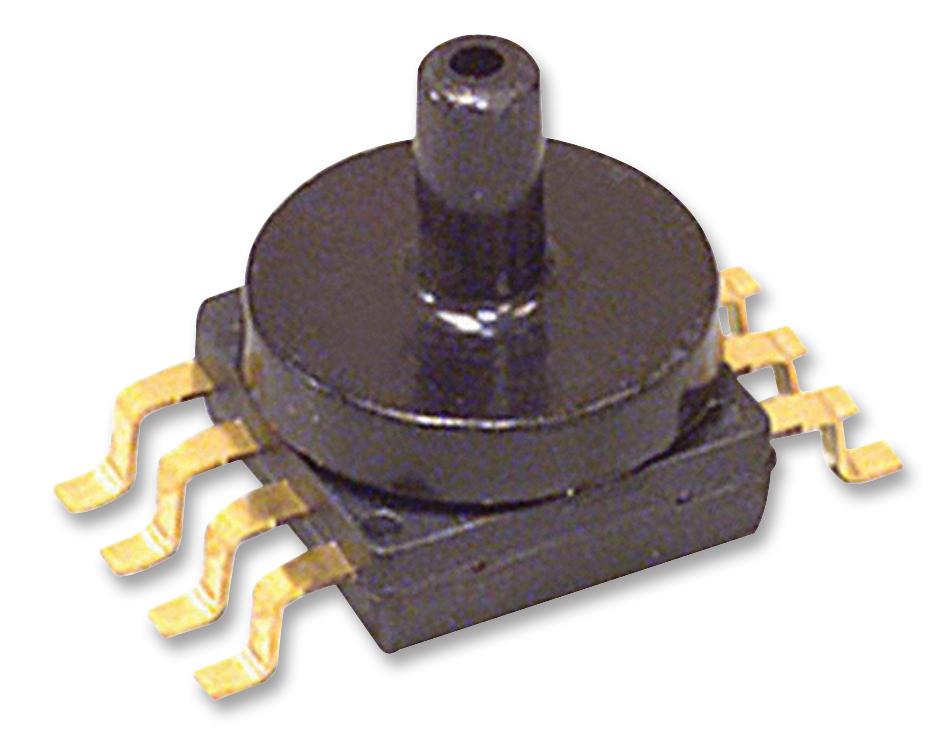

MPXA6115AC6U Ic, Sensor, Pressure 16.7 Psi NXP

NXPUGS :MPXA6115AC6U Code de commande:1457181

Prix:
Prix ​​promotionnel€35,72

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (464 unité)

Documents et téléchargements

description

NXP - MPXA6115AC6U - Pressure Sensor, Absolute, 45.9 mV/kPa, 15 kPa, 115 kPa, 4.75 V, 5.25 V

  • Pressure Type: Absolute
  • Sensitivity, V/P: 45.9mV/kPa
  • Operating Pressure Min: 15kPa
  • Operating Pressure Max: 115kPa
  • Supply Voltage Min: 4.75V
  • Supply Voltage Max: 5.25V
  • Sensor Case Style: SIP
  • No. of Pins: 8Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Base Number: 6115
  • Connection Size: 3.175mm
  • Operating Pressure Range: 15kPa to 115kPa
  • Operating Temperature Range: -40°C to +125°C
  • Port Style: Axial
  • Supply Current: 6mA
  • Supply Voltage Range: 4.75V to 5.25V
  • Termination Type: Surface Mount Device
