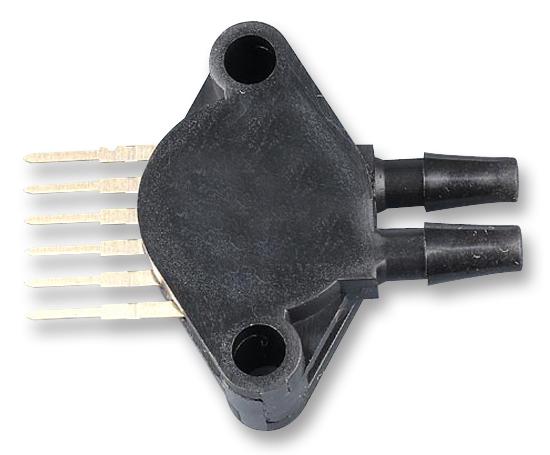

MPX5010DP Ic, Pressure Sensor NXP

NXPUGS :MPX5010DP Code de commande:1555605

Prix:
Prix ​​promotionnel€32,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1189 unité)

Documents et téléchargements

description

NXP - MPX5010DP - Pressure Sensor, Differential, 0 kPa, 10 kPa, 4.75 V, 5.25 V

  • Pressure Type: Differential
  • Sensitivity, V/P: 450mV/kPa
  • Operating Pressure Min: 0kPa
  • Operating Pressure Max: 10kPa
  • Supply Voltage Min: 4.75V
  • Supply Voltage Max: 5.25V
  • Sensor Case Style: SIP
  • No. of Pins: 6Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: MPxx5010 Series
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Base Number: 5010
  • Connection Size: 4.928mm
  • Device Marking: MPX5010DP
  • No. of Channels: 1Channels
  • Operating Pressure Range: 0Pa to 10kPa
  • Operating Temperature Range: -40°C to +125°C
  • Port Style: Dual Port
  • Supply Current: 5mA
  • Supply Current Max: 10mA
  • Supply Voltage Range: 4.75V to 5.25V
  • Termination Type: Through Hole
