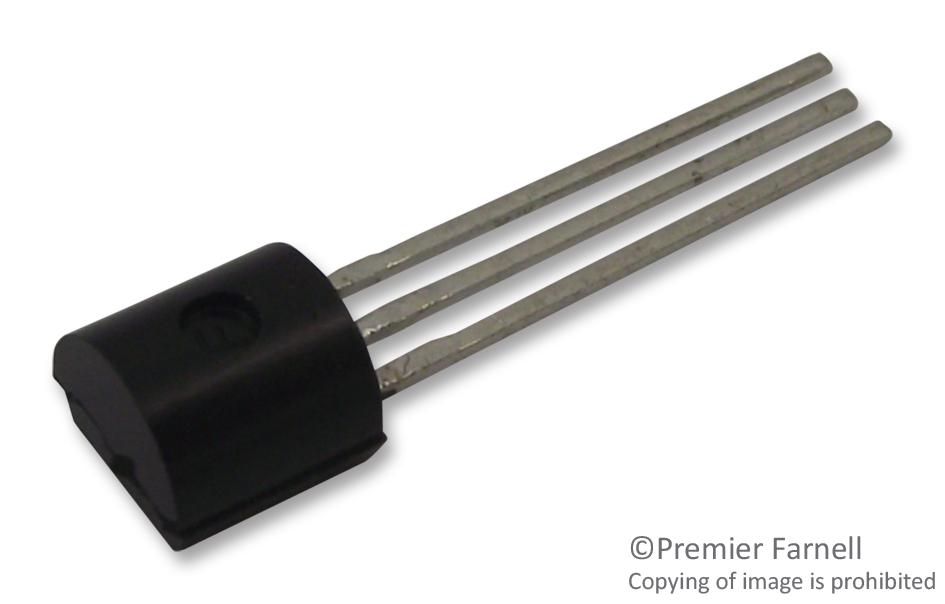

MPSA44 Transistor, NPN, TO-92 multicomp Pro

MULTICOMP PROUGS :MPSA44 Code de commande:1574391

Prix:
Prix ​​promotionnel€0,46

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (59170 unité)

Documents et téléchargements

description

MULTICOMP PRO - MPSA44 - Bipolar (BJT) Single Transistor, NPN, 400 V, 300 mA, 625 mW, TO-92, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 400V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 625mW
  • DC Collector Current: 300mA
  • DC Current Gain hFE: 50hFE
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 750mV
  • Continuous Collector Current Ic Max: 300mA
  • Current Ic @ Vce Sat: 50mA
  • Current Ic Continuous a Max: 300mA
  • Current Ic hFE: 100mA
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 20MHz
  • Hfe Min: 40
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pin Configuration: b
  • Power Dissipation Ptot Max: 625mW
  • Termination Type: Through Hole
  • Voltage Vcbo: 500V
