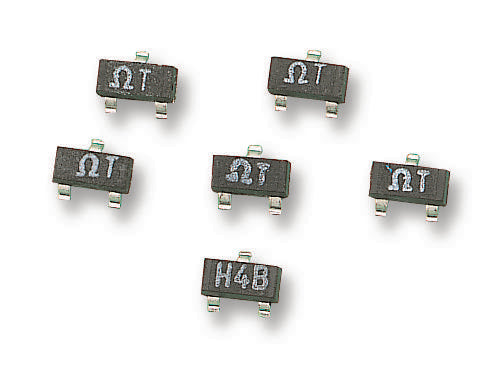

VISHAY - MPMT2003AT5 - Resistor Network, 100 kohm, MPMT, 100 kohm, 2 Elements, Voltage Divider, SOT-23
- Resistance: 100kohm
- Product Range: MPMT Series
- No. of Elements: 2Elements
- Network Circuit Type: Voltage Divider
- Resistor Case Style: SOT-23
- No. of Pins: 3Pins
- Voltage Rating: 100V
- Power Rating per Element: 100mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 25ppm/°C
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- External Depth: 1.73mm
- External Length / Height: 4.93mm
- External Width: 3.99mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 200mW
- Ratio: 1
- Ratio Tolerance: 0.05%
- Resistance R1: 100kohm
- Resistance R2: 100kohm
- Resistances R1 / R2: 100K/100K
- Resistor Element Material: Thin Film
- Resistor Mounting: Surface Mount Device
