MPI002/Term/D4 Switch, VR, Illum, Red/Blue Bulgin Limited

BULGIN LIMITEDUGS :MPI002/TERM/D4 Code de commande:1454953

Prix:
Prix ​​promotionnel€51,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (112 unité)

Documents et téléchargements

description

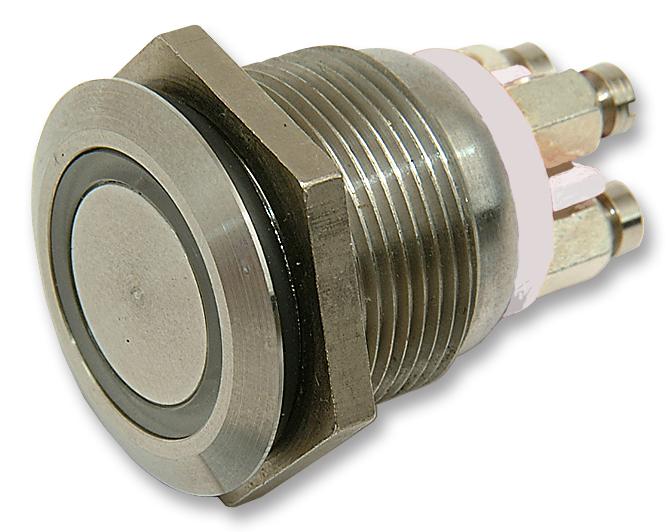

BULGIN LIMITED - MPI002/TERM/D4 - Vandal Resistant Switch, MPI002, 19.2 mm, SPST-NO, Momentary, Flush, Natural

  • Contact Configuration: SPST-NO
  • Actuator / Cap Colour: Natural
  • Product Range: MPI002 Series
  • Switch Operation: Momentary
  • Illumination Colour: Blue, Red
  • Switch Terminals: Screw
  • Contact Current Max: 50mA
  • Contact Voltage AC Max: -
  • Operating Force: 12N
  • Contact Voltage DC Max: 24V
  • SVHC: No SVHC (27-Jun-2018)
  • Bezel Diameter: 22mm
  • Colour: Red / Blue
  • Contact Current DC Max: 50mA
  • Contact Current Rating: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage VDC: 24V
  • External Depth: 30.3mm
  • External Length / Height: 31mm
  • Forward Current If Max: 20mA
  • IP / NEMA Rating: IP66
  • IP Rating: IP66
  • Insulation Resistance: 1000Mohm
  • No. of Electrical Operations: 35000
  • No. of Mechanical Operations: 750000
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 19.2mm
  • Pushbutton Actuator Style: Flush
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
