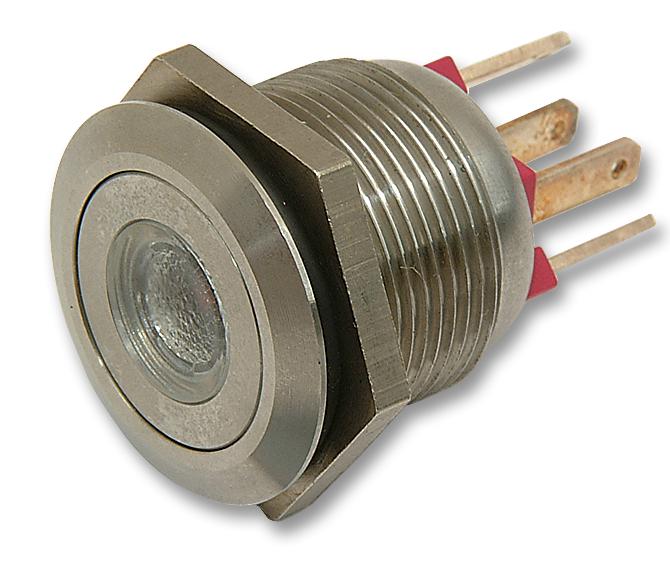

MPI001/28/BL SWITCH, VANDAL RESIST BLUE DOT BULGIN LIMITED

BULGIN LIMITED - MPI001/28/BL - Vandal Resistant Switch, 19.2 mm, SPST-NO, Off-(On), Flush, Natural

• Contact Configuration: SPST-NO
• Actuator / Cap Colour: Natural
• Product Range: -
• Switch Operation: Off-(On)
• Illumination Colour: Blue
• Switch Terminals: Quick Connect
• Contact Current Max: 50mA
• Contact Voltage AC Max: -
• Operating Force: 12N
• Contact Voltage DC Max: 24V
• SVHC: No SVHC (27-Jun-2018)
• Bezel Diameter: 22mm
• Colour: Blue
• Contact Current DC Max: 50mA
• Contact Current Rating: 50mA
• Contact Resistance: 100mohm
• Contact Voltage VDC: 24V
• External Depth: 11mm
• External Length / Height: 32.7mm
• Forward Current If Max: 20mA
• Forward Voltage: 3.4V
• IP / NEMA Rating: IP66
• IP Rating: IP66
• Insulation Resistance: 1000Mohm
• Luminous Intensity Typ: 1500mcd
• Operating Temperature Max: 70°C
• Operating Temperature Min: -30°C
• Panel Cutout Diameter: 19.2mm
• Pushbutton Actuator Style: Flush
• Pushbutton Switch Type: Anti-Vandal
• Switch Mounting: Panel
