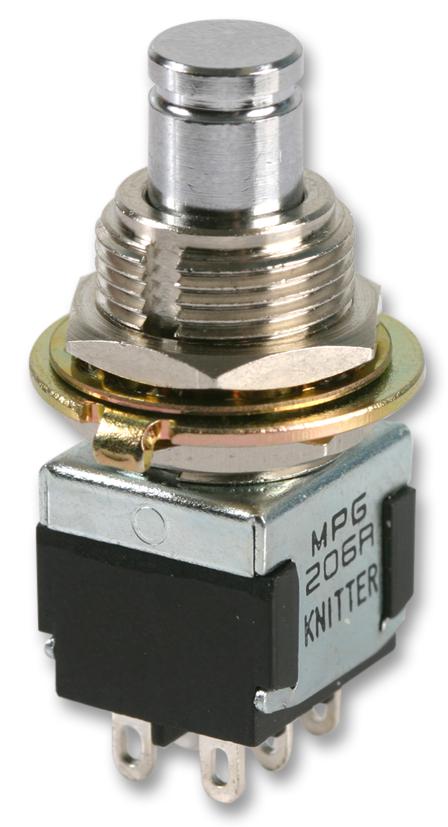

KNITTER-SWITCH - MPG 206 N - Pushbutton Switch, MPG, 11.8 mm, DPDT, On-On, Round, Black
- Switch Operation: On-On
- Contact Configuration: DPDT
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Contact Current Max: 6A
- Switch Terminals: Solder Lug
- Product Range: MPG Series
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Plunger
- Actuator / Cap Colour: Black
- Bush Diameter: 12mm
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current AC Max: 6A
- Contact Current DC Max: 4A
- Contact Resistance: 10mohm
- Contact Resistance Max: 10mohm
- Contact Voltage VAC: 125V
- Contact Voltage VDC: 28V
- External Depth: 13mm
- External Length / Height: 30.7mm
- External Width: 13mm
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1000Mohm
- No. of Mechanical Operations: 30000
- Operating Temperature Max: 140°C
- Operating Temperature Min: 45°C
- Panel Cutout Diameter: 11.8mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
- Thread Size: 15/32-32
