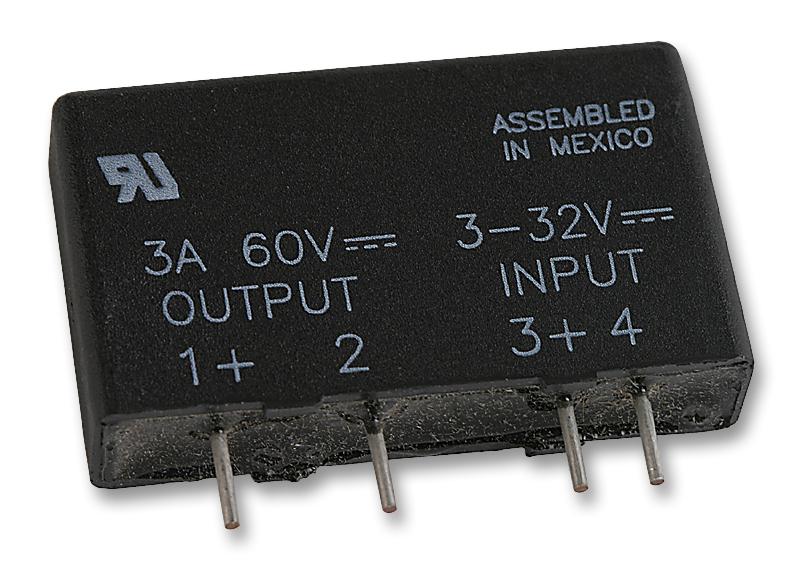

SENSATA/CRYDOM - MPDCD3-B - Solid State Relay, MP Series, SIP, SPST-NC, 3 A, 60 VDC, PCB, Through Hole, DC Switch
- Contact Configuration: SPST-NC
- Load Current: 3A
- Operating Voltage Max: 60VDC
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: DC Switch
- Operating Voltage Min: 3VDC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: MP Series
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Control Current @ 5VDC: 2.6mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 10.2mm
- External Length / Height: 25.4mm
- External Width: 43.1mm
- Input Impedance: 1500kohm
- Input Voltage: 3V DC to 32V DC
- Insulation Resistance: 1000Mohm
- Isolation Voltage: 4kV
- Leakage Current: 1mA
- Load Current Max: 3A
- Load Current Min: 0.02A
- Load Current RMS Max: 3A
- Load Voltage DC Max: 60V
- Load Voltage DC Min: 3VDC
- Load Voltage Range: 3V DC to 60V DC
- No. of Pins: 4Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Output Type: Transistor
