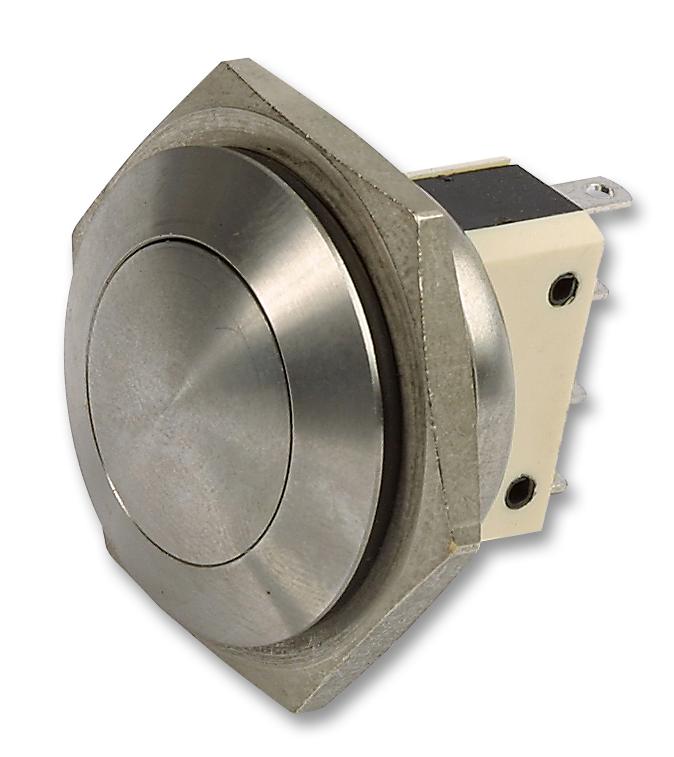

BULGIN LIMITED - MP0038/3 - Vandal Resistant Switch, 25.8 mm, SPDT, Momentary, Round Domed, Natural
- Switch Operation: Momentary
- Contact Configuration: SPDT
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 28V
- Contact Current Max: 5A
- Switch Terminals: Solder Lug
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Actuator / Cap Colour: Natural
- Contact Current @ Contact Voltage AC Max: 5A
- Contact Current AC Max: 5A
- Contact Current DC Max: 2A
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 28V
- Dielectric Strength VDC: 2kV
- External Depth: 26mm
- External Diameter: 27.8mm
- External Length / Height: 27.6mm
- IP / NEMA Rating: IP66
- IP Rating: IP66
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1000Mohm
- Material: Silver
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Panel Cutout Diameter: 25.8mm
- Panel Cutout Size: 25.8 mm
- Panel Thickness Max: 4mm
- Pushbutton Actuator Style: Round Domed
- Pushbutton Switch Type: Anti-Vandal
- Switch Mounting: Panel
