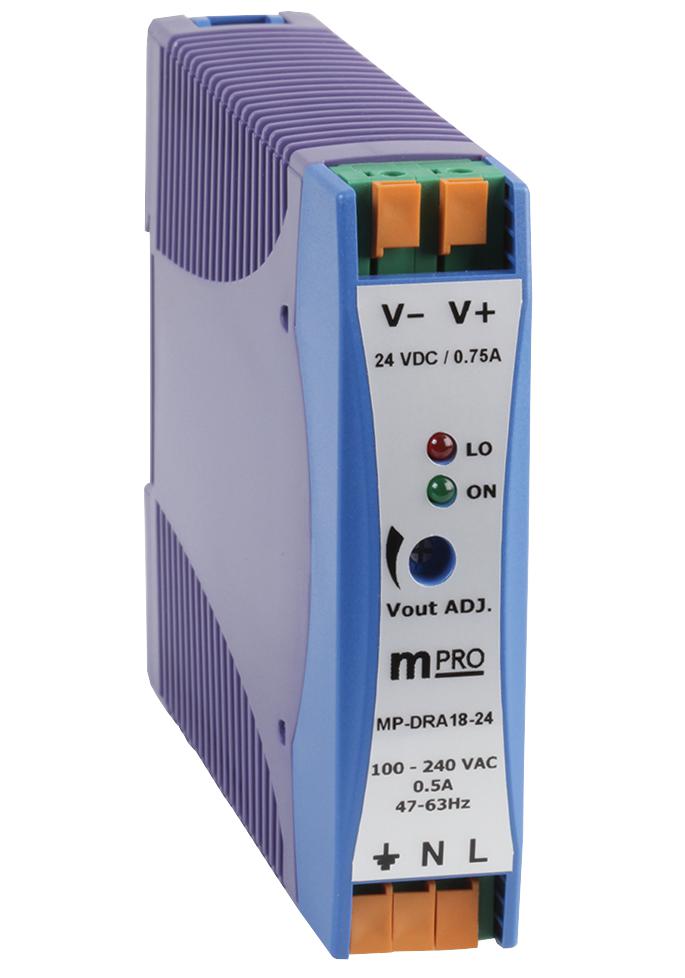

MULTICOMP PRO - MP-DRA18-24 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 18 W, 24 VDC, 750 mA
- No. of Outputs: 1 Output
- Output Power Max: 18W
- Output Voltage - Output 1: 24VDC
- Output Current - Output 1: 750mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Applications: Industrial
- Approval Bodies: CE, TUV, UL
- Efficiency: 77%
- External Depth: 115mm
- External Length / Height: 90mm
- External Width: 22.5mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 90mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Input Voltage Max: 265VAC
- Input Voltage Min: 85VAC
- Isolation Voltage: 3000VAC
- Length: 115mm
- Line Regulation: 1%
- Load Regulation: 2%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 50°C
- Operating Temperature Min: -10°C
- Output Current: 750mA
- Output Power: 18W
- Output Ripple Voltage pk-pk: 150mV
- Output Voltage: 24V
