description

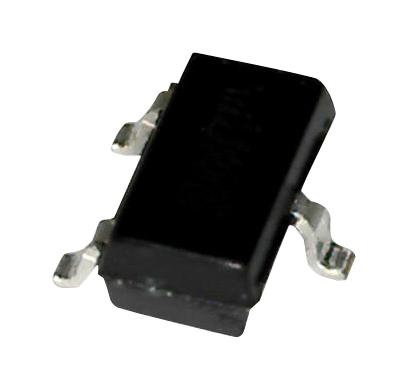

ONSEMI - MMBT3904WT1G - Bipolar (BJT) Single Transistor, General Purpose, NPN, 40 V, 200 mA, 150 mW, SOT-323, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 40V
- Transition Frequency ft: 300MHz
- Power Dissipation Pd: 150mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 300hFE
- Transistor Case Style: SOT-323
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: MMBTxxxx Series
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 200mV
- Complementary Device: MMBT3906WT1G
- Continuous Collector Current Ic Max: 200mA
- Current Ic Continuous a Max: 50mA
- Current Ic hFE: 100mA
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 30
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: B(1), C(3), E(2)
- Power Dissipation Ptot Max: 150mW
- Termination Type: Surface Mount Device
- Voltage Vcbo: 60V
