Description

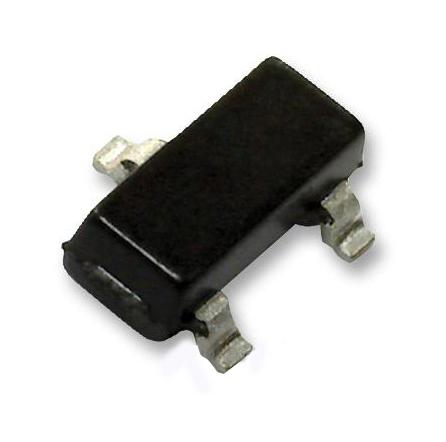

ONSEMI - MMBD1504A - Small Signal Diode, Dual Common Cathode, 180 V, 200 mA, 1.15 V, 2 A
- Diode Configuration: Dual Common Cathode
- Repetitive Reverse Voltage Vrrm Max: 180V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 1.15V
- Reverse Recovery Time trr Max: -
- Forward Surge Current Ifsm Max: 2A
- Operating Temperature Max: 150°C
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Product Range: MMBD1 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Current Ifsm: 1A
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Forward Current If Max: 200mA
- Forward Voltage: 1.1V
- Junction Temperature Tj Max: 150°C
- Power Dissipation Ptot Max: 350mW
- SMD Marking: A14
- Test Current: 200mA
