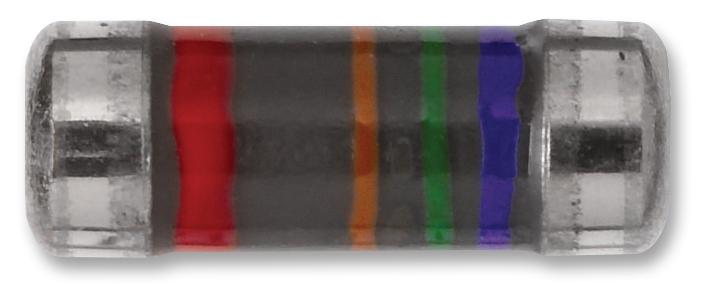

VISHAY - MMA02040E5109BB100 - Surface Mount MELF Resistor, 51 ohm, MMA 0204, 200 V, Metal Film, 250 mW, ± 0.1%
- Resistance: 51ohm
- Product Range: MMA 0204 Series
- Voltage Rating: 200V
- Resistor Element Material: Metal Film
- Power Rating: 250mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 15ppm/°C
- MELF Resistor Case: MELF 0204 [3715 Metric]
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 1.4mm
- External Length / Height: 3.6mm
- Full Power Rating Temperature: 70°C
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +85°C
- Power Rating 10/85/57: 0.07W
- Power Rating 55/125/57: 0.25W
- Reel Quantity: 3000
- Resistor Mounting: Surface Mount Device
- Temperature Coeff. +: 15ppm/°C
- Temperature Coeff. -: 15ppm/°C
- Tolerance +: 0.1%
- Tolerance -: 0.1%
- Voltage Rating V DC: 200V
- Voltage Rating VAC: 200V
