MK21P-1A66C-500W Reed Sensor, 10w Standexmeder

STANDEXMEDERUGS :MK21P-1A66C-500W Code de commande:1447651

Prix:
Prix ​​promotionnel€16,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1051 unité)

Documents et téléchargements

description

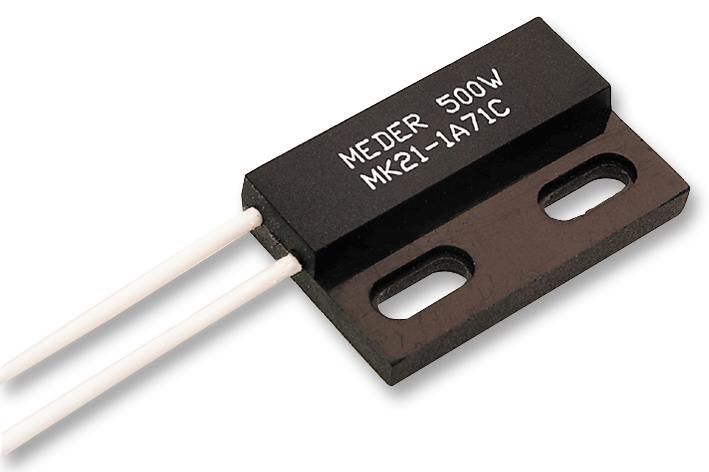

STANDEXMEDER - MK21P-1A66C-500W - Reed Switch, MK21 Series, Panel Mount, Potted, SPST-NO, 10 W, 200 Vac/dc, 0.5 A, 20 to 25 AT

  • Sensing Range Max: -
  • Sensor Mounting: -
  • Operating Temperature Min: -5°C
  • Operating Temperature Max: 70°C
  • Supply Current: 500mA
  • Product Range: MK21 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Breakdown Voltage Vbr: 225VDC
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 500mA
  • Contact Resistance: 150mohm
  • Contact to Contact Capacitance: 0.2pF
  • DC Power: 10W
  • External Depth: 19mm
  • External Length / Height: 6.35mm
  • External Width: 26.8mm
  • Fixing Centres: 16mm
  • Insulation Resistance: 100Mohm
  • Lead Length: 500mm
  • Off Switching Time: 0.1 ms
  • On Switching Time: 0.5 ms
  • Operating Temperature Range: -5°C to +70°C
  • Pull in Range Max: 25mm
  • Pull in Range Min: 15mm
  • Switching Current AC Max: 0.5A
  • Switching Current DC Max: 0.5mA
  • Switching Voltage: 200V
  • Switching Voltage AC / DC Max: 200VDC
