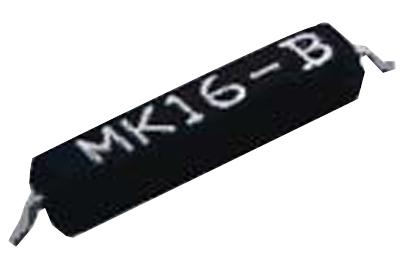

STANDEXMEDER - MK16-B-2 - Reed Switch, MK16 Series, SMD, 15 mm, SPST-NO, 10 W, 200 Vac/dc, 0.5 A, 10 to 15 AT
- Sensing Range Max: 15mm
- Sensor Mounting: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 130°C
- Supply Current: 500mA
- Product Range: MK16 Series
- SVHC: No SVHC (15-Jan-2018)
- Breakdown Voltage Vbr: 200VDC
- Contact Configuration: SPST-NO
- Contact Current AC Max: 500mA
- Contact Current DC Max: 500mA
- Contact Resistance: 150mohm
- DC Power: 10VA
- External Depth: 2.3mm
- External Length / Height: 2.3mm
- External Width: 11.5mm
- Off Switching Time: 0.1 ms
- On Switching Time: 0.6 ms
- Operating Temperature Range: -40°C to +130°C
- Pull in Range Max: 15mm
- Pull in Range Min: 10mm
- Sensing Distance Max: 15mm
- Sensing Distance Min: 10mm
- Sensing Range: 10mm to 15mm
- Switching Current AC Max: 0.5A
- Switching Current DC Max: 0.5A
- Switching Voltage: 200V
- Switching Voltage AC / DC Max: 200VDC
- Termination Type: Surface Mount Device
