ONSEMI - MJL21194G - Bipolar (BJT) Single Transistor, Audio, NPN, 250 V, 16 A, 200 W, TO-264, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 250V
- Transition Frequency ft: 4MHz
- Power Dissipation Pd: 200W
- DC Collector Current: 16A
- DC Current Gain hFE: 75hFE

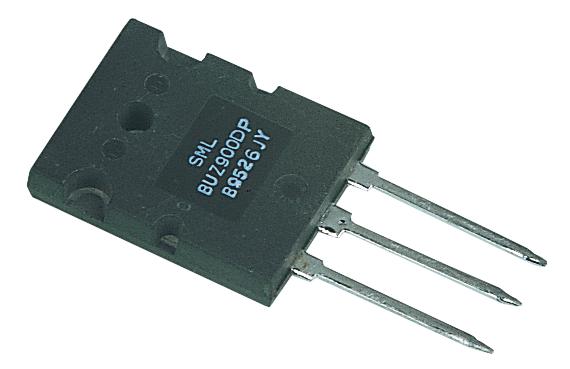

- Transistor Case Style: TO-264
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Av Current Ic: 16A
- Collector Emitter Saturation Voltage Vce(on): 1.4V
- Continuous Collector Current Ic Max: 16A
- Current Ic Continuous a Max: 16A
- Current Ic hFE: 8A
- Device Marking: MJL21194
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 4MHz
- Gain Bandwidth ft Typ: 4MHz
- Hfe Min: 25
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 200W
- Pulsed Current Icm: 30A
- Voltage Vcbo: 400V
