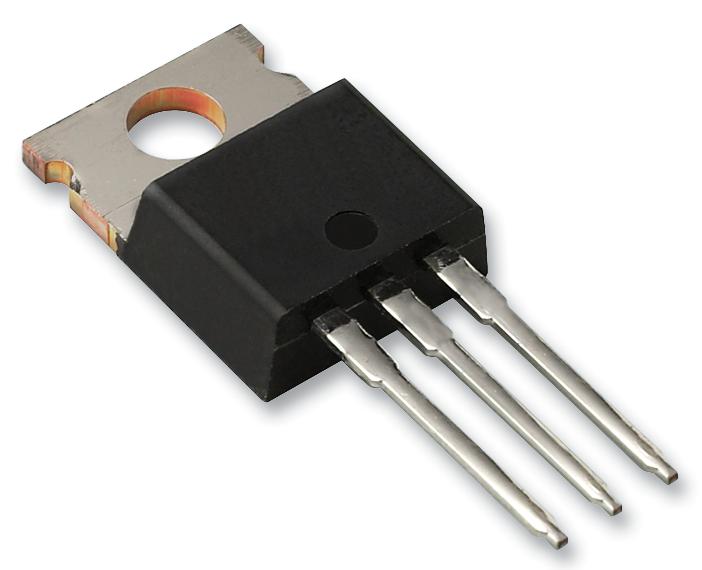

MULTICOMP PRO - MJE15030 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 150 V, 8 A, 50 W, TO-220, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 150V
- Transition Frequency ft: 30MHz
- Power Dissipation Pd: 50W
- DC Collector Current: 8A
- DC Current Gain hFE: 40hFE
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Av Current Ic: 8A
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 8A
- Current Ic Continuous a Max: 8A
- Current Ic hFE: 4A
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 30MHz
- Gain Bandwidth ft Typ: 30MHz
- Hfe Min: 20
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 50W
- Pulsed Current Icm: 16A
- Voltage Vcbo: 150V
