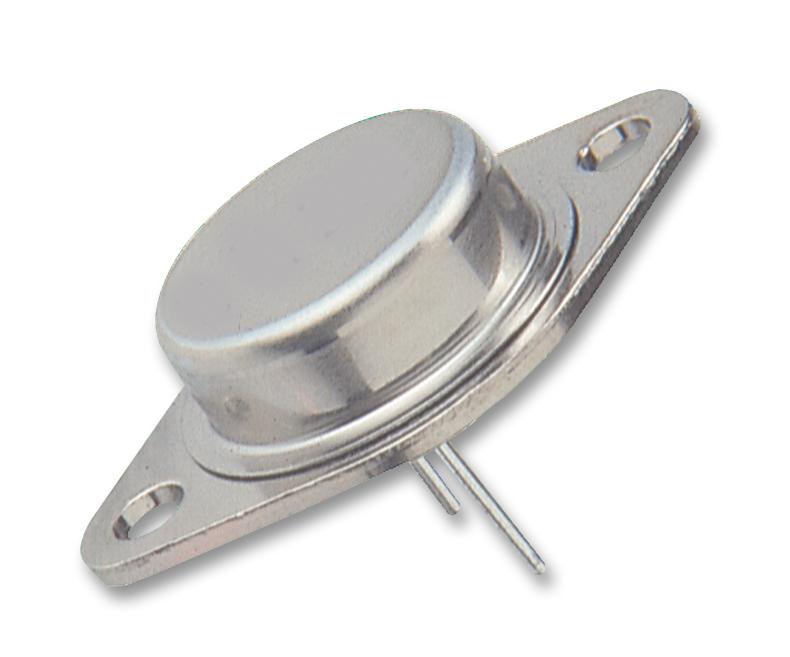

ONSEMI - MJ11032G - Bipolar (BJT) Single Transistor, Darlington, NPN, 120 V, 50 A, 300 W, TO-204, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 120V
- Transition Frequency ft: -
- Power Dissipation Pd: 300W
- DC Collector Current: 50A
- DC Current Gain hFE: 18000hFE
- Transistor Case Style: TO-204
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 3.5V
- Current Ic Continuous a Max: 50A
- Hfe Min: 400
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +200°C
- Termination Type: Through Hole
