MJ11015G Transistor, PNP, -120V TO-3 ONSEMI

ONSEMIUGS :MJ11015G Code de commande:9556575

Prix:
Prix ​​promotionnel€11,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1034 unité)

Documents et téléchargements

description

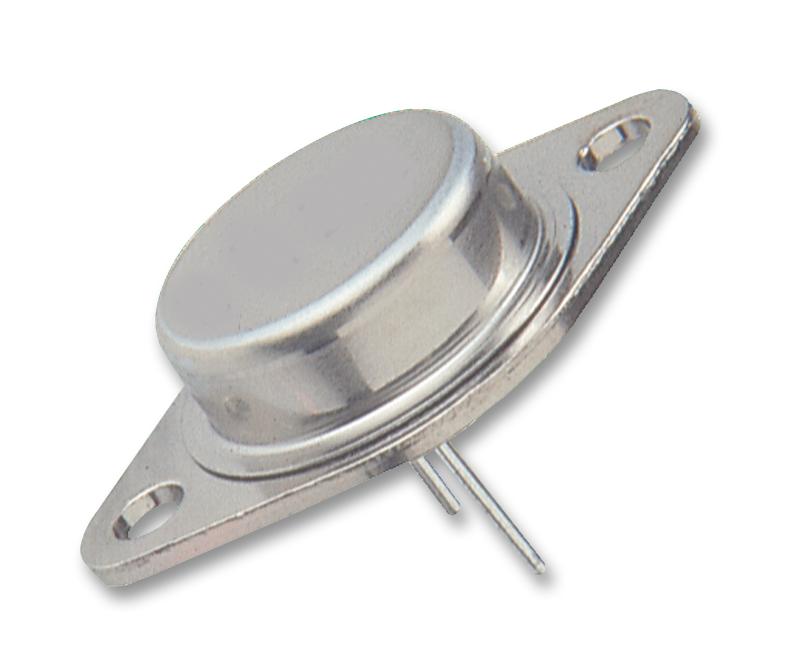

ONSEMI - MJ11015G - Bipolar (BJT) Single Transistor, PNP, 120 V, 30 A, 200 W, TO-3, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: -120V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 200W
  • DC Collector Current: -30A
  • DC Current Gain hFE: 1000hFE
  • Transistor Case Style: TO-3
  • No. of Pins: 2Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: Lead (27-Jun-2018)
  • Av Current Ic: 30A
  • Collector Emitter Saturation Voltage Vce(on): -3V
  • Continuous Collector Current Ic Max: 30A
  • Current Ic Continuous a Max: 30A
  • Current Ic hFE: 20A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 4MHz
  • Hfe Min: 1000
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Power Dissipation Ptot Max: 200W
  • Transistor Type: Darlington
  • Voltage Vcbo: 120V
