description

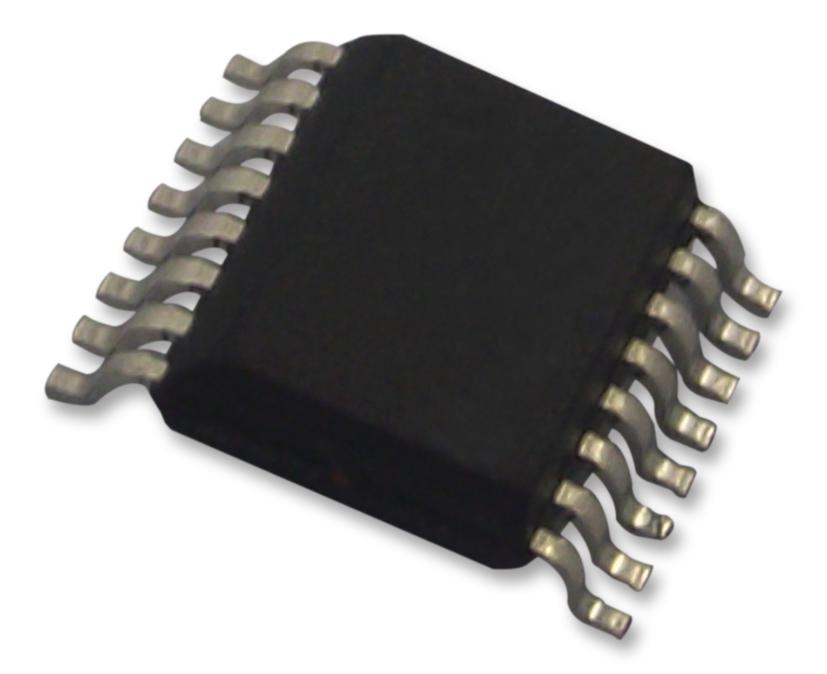

MICROCHIP - MIC3223YTSE - LED Driver, Boost (Step Up), 4.5V to 20V input, 1 MHz Switch. Frequency, 21V/350 mA out, TSSOP-16
- Device Topology: Boost (Step Up)
- Input Voltage Min: 4.5V
- Input Voltage Max: 20V
- Output Voltage Max: 21V
- Output Current Max: 350mA
- Switching Frequency: 1MHz
- No. of Outputs: 1Outputs
- IC Mounting: SMD
- Driver Case Style: TSSOP
- No. of Pins: 16Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 3223
- Device Type: LED
- Dimming Control Type: PWM
- Efficiency: 80%
- Input Voltage: 4.5V to 20V
- LED Driver Application: Architectural, Industrial Lighting
- Operating Temperature Range: -40°C to +125°C
- Output Current: 350mA
- Output Voltage: 21V
- Topology: Boost (Step Up)
